Description:The 8P34S2102 is a high-performance, low-power, differential dual 1:2 LVDS output, 1.8V/2.5V fanout buffer. The device supports fail-safe operation and is designed for the fanout of high-frequency, very low additive phase-noise clock and data signals. Two independent buffer channels are available. Each channel has two low-skew outputs. High isolation between channels minimizes noise coupling. AC characteristics such as propagation delay are matched between channels. Guaranteed output-to-output and part-to-p
Renesas provides a recommended PCB layout guide in their application notes (e.g., AN9834) and evaluation board documentation. It's essential to follow these guidelines to ensure proper signal integrity, power supply decoupling, and thermal management.
The 8P34S2102NLGI is a highly configurable device. To set a specific clock frequency, refer to the device's register map and programming guide (e.g., Section 5 of the datasheet). You'll need to program the appropriate registers to configure the clock source, divider, and multiplier settings.
The 8P34S2102NLGI has a thermal junction-to-case rating of 125°C. To ensure reliable operation, it's crucial to provide adequate heat sinking, such as a thermal pad or heat sink, and to follow proper PCB thermal design guidelines. Renesas also provides thermal management guidelines in their application notes.
To troubleshoot power management issues, start by reviewing the device's power mode settings and configuration. Check the power management registers, voltage regulator settings, and clock gating configurations. Use Renesas' development tools, such as the Synergy Configurator or e² studio, to debug and analyze the device's behavior.
The 8P34S2102NLGI is designed to meet various EMI and EMC standards. To ensure compliance, follow Renesas' guidelines for PCB layout, component selection, and shielding. Additionally, consider using EMI filters, chokes, or other noise reduction techniques to minimize electromagnetic interference.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
8P34S2102NLGI Overview

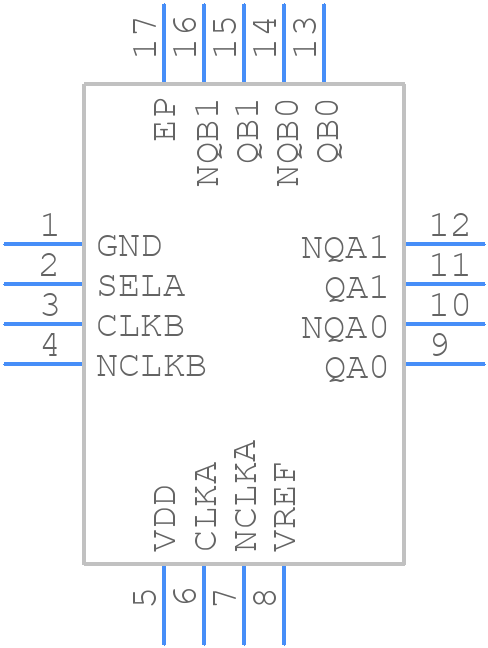

Use the download button to access the 8P34S2102NLGI schematic symbol, PCB footprint, and 3D model.
