8Q-32.000MEEV-T footprint, schematic symbol and 3D model by TXC CORPORATION

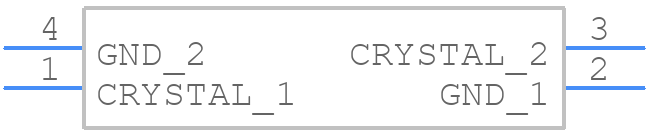

Symbol

PCB Footprints

3D Models

8Q-32.000MEEV-T Details

The recommended termination resistance is 1 kΩ to ensure proper signal integrity and minimize reflections.
The 8Q-32.000MEEV-T requires a stable power supply with a voltage range of 1.8V to 3.3V. Ensure the power supply noise is minimized, and decoupling capacitors are used to filter out high-frequency noise.
The 8Q-32.000MEEV-T can operate within a temperature range of -40°C to 85°C. However, it's essential to consider the derating curves and thermal management to ensure reliable operation.
The 8Q-32.000MEEV-T output signal is a CMOS-level signal. Ensure proper signal routing, and consider using a series resistor and a capacitor to filter out high-frequency noise and minimize EMI.
Store the 8Q-32.000MEEV-T in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -20°C to 40°C, and the relative humidity should be below 60%.

Expert Contribution

System Verified

Community Approved

Use the download button to access the 8Q-32.000MEEV-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 8Q-32, or try a keyword search, such as Quartz Crystals
