8S89834AKILF - Renesas Electronics

Description: The 8S89834I is a high speed 2-to-4 LVCMOS/LVTTL-to-LVPECL/ECL Clock Multiplexer. The 8S89834I is optimized for high speed and very low output skew, making it suitable for use in demanding applications such as SONET, 1 Gigabit and 10 Gigabit Ethernet, and Fibre Channel. The device also has an output enable pin which may be useful for system test and debug purposes. The 8S89834I is packaged in a small 3mm x 3mm 16-pin VFQFN package which makes it ideal for use in space-constrained applications.

Download 8S89834AKILF Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 8S89834AKILF model

Email notifications will be applied after download.

Send part feedback

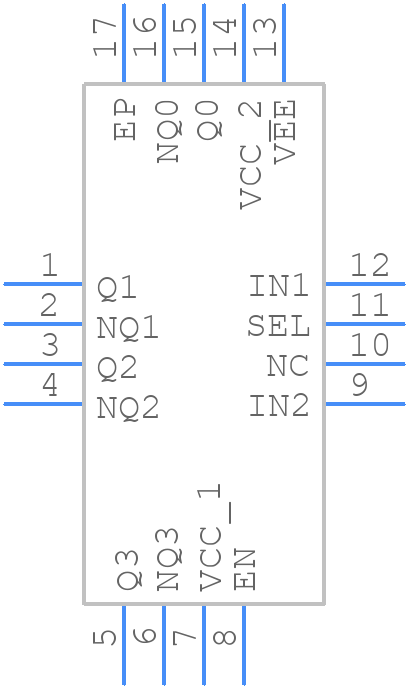

Symbol

8S89834AKILF - Renesas Electronics - PCB symbol

PCB Footprints

8S89834AKILF - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-QFN Package

3D Models

8S89834AKILF - Renesas Electronics - 3D model - Quad Flat No-Lead - 16-QFN Package

Datasheet Download Datasheet
Stock & Prices Price & Stock for 8S89834AKILF
Part Number 8S89834AKILF
Manufacturer Renesas Electronics
Pin Count 17
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - 16-QFN Package
Released Date Jun 22, 2021
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

8S89834AKILF Details

Manufacturer Part Number:
8S89834AKILF
Brand Name:
Renesas
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
VFQFPN
Package Description:
VFQFN-16
Pin Count:
16
Manufacturer Package Code:
NLG16P2
HTS Code:
8542.39.00.60
Manufacturer:
Renesas Electronics Corporation
YTEOL:
0
JESD-609 Code:
e3
Logic IC Type:
LOW SKEW CLOCK DRIVER
Moisture Sensitivity Level:
3
Terminal Finish:
Tin (Sn)
