8SLVP1208ANBGI8 - Renesas Electronics

Description: The 8SLVP1208 is a high-performance differential LVPECL fanout buffer. The device is designed for the fanout of high-frequency, very low additive phase-noise clock and data signals. The 8SLVP1208 is characterized to operate from a 3.3V and 2.5V power supply. Guaranteed output-to-output and part-to-part skew characteristics make the 8SLVP1208 ideal for those clock distribution applications demanding well-defined performance and repeatability. Two selectable differential inputs and eight low skew outputs are

Download 8SLVP1208ANBGI8 Model

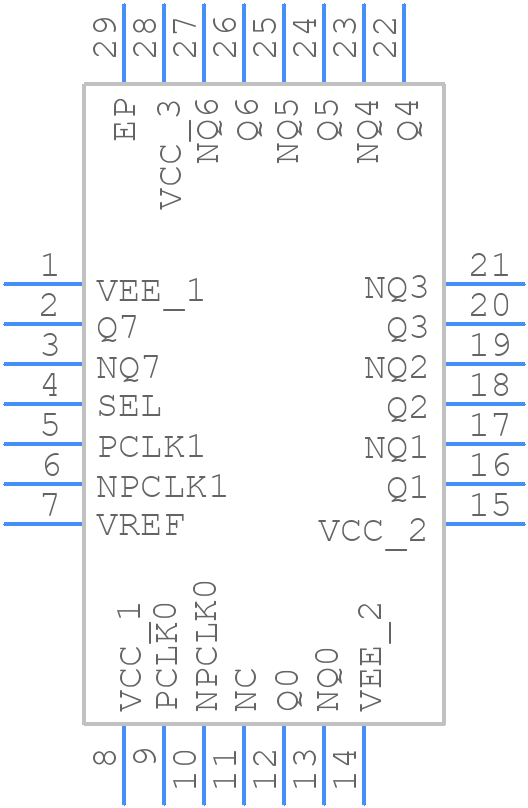

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
8SLVP1208ANBGI8 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NBG28
click to zoom
3D Models
8SLVP1208ANBGI8 - Renesas Electronics  - 3D model - Quad Flat No-Lead - NBG28
click to zoom

8SLVP1208ANBGI8 Details

  • Manufacturer Part Number:

    8SLVP1208ANBGI8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Pin Count:

    28

  • Manufacturer Package Code:

    NBG28

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    8

  • Additional Feature:

    ALSO OPERATES AT 3.3 V SUPPLY

  • Family:

    8SLVP

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    S-XQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Number of True Outputs:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    BGA52,6X10,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    0.41 ns

  • Propagation Delay (tpd):

    0.41 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.064 ns

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

8SLVP1208ANBGI8 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The datasheet provides a recommended land pattern, but additional thermal design considerations should be taken into account.
  • To ensure reliable operation across the entire operating temperature range, it is essential to follow the recommended operating conditions, including voltage, current, and power dissipation. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a safe junction temperature.
  • When using the 8SLVP1208ANBGI8 in a high-reliability or safety-critical application, it is crucial to follow the recommended design and testing guidelines to ensure the device meets the required safety and reliability standards. This may include additional testing, validation, and certification procedures.
  • The 8SLVP1208ANBGI8 is not specifically designed for radiation-intensive environments. If your application requires radiation tolerance, you should consult with Renesas Electronics Corporation or consider using a radiation-hardened device.
  • To minimize EMI and RFI, follow proper PCB design and layout guidelines, including using shielding, filtering, and grounding techniques. Additionally, consider using EMI filters or common-mode chokes to reduce emissions.
