8SLVS1118NLGI - Renesas Electronics

Description: The 8SLVS1118 is a high-performance, low-power, differential 1:18 output fanout buffer. This highly versatile device is designed for the fanout of high-frequency, very low additive phase-noise clock and data signals. Guaranteed output-to-output and part-to-part skew characteristics make the 8SLVS1118 ideal for clock distribution applications that demand well-defined performance and repeatability. The device is characterized to operate from a 2.5V or 3.3V power supply. The integrated bias voltage references

Download 8SLVS1118NLGI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

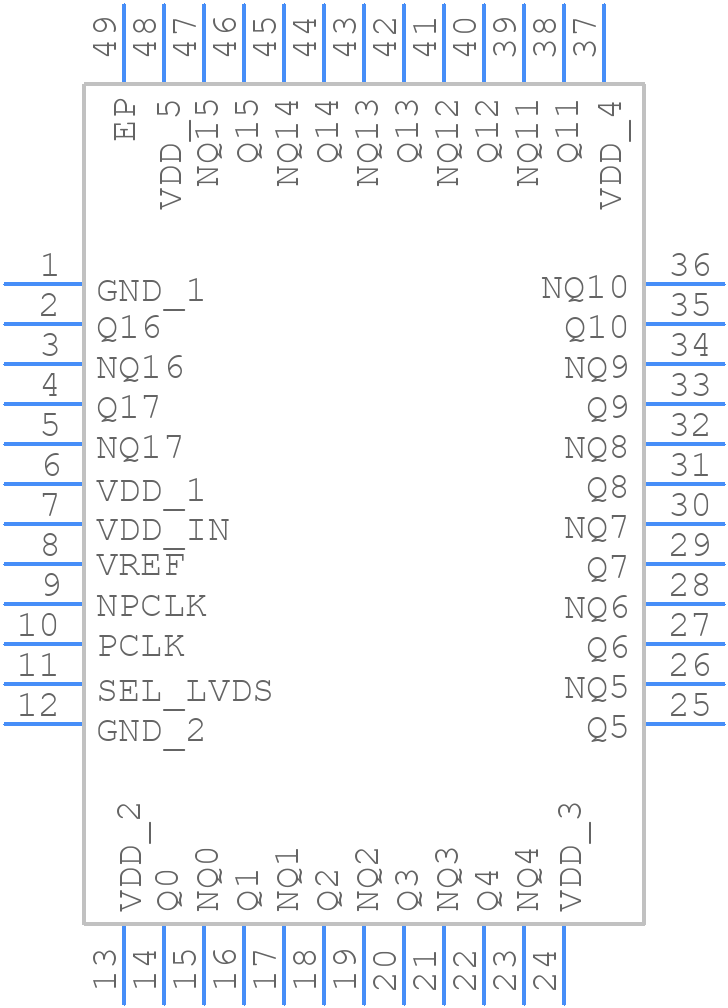

8SLVS1118NLGI - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
8SLVS1118NLGI - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NLG48P1
click to zoom
3D Models
8SLVS1118NLGI - Renesas Electronics - 3D model - Quad Flat No-Lead - NLG48P1
click to zoom

8SLVS1118NLGI Details

  • Manufacturer Part Number:

    8SLVS1118NLGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Pin Count:

    48

  • Manufacturer Package Code:

    NLG48P1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Additional Feature:

    IT ALSO OPERATES AT 3.3V

  • Family:

    8SLVS

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of True Outputs:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    0.4 ns

  • Same Edge Skew-Max (tskwd):

    0.06 ns

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

8SLVS1118NLGI Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output signals should be routed away from each other to minimize crosstalk.
  • Use a high-quality, low-ESR capacitor (e.g., 0.1uF) as close to the device as possible. Ensure the power supply is clean and stable, and consider adding a ferrite bead or inductor in series with the power supply to filter out high-frequency noise.
  • The 8SLVS1118NLGI is rated for operation from -40°C to +85°C. However, it's recommended to derate the device's performance and power consumption at temperatures above 70°C to ensure reliable operation.
  • Use a high-speed oscilloscope to capture waveforms and analyze signal quality. Check for signal reflections, ringing, or other anomalies. Verify that the device is properly terminated, and the PCB layout is optimized for signal integrity.
  • The 8SLVS1118NLGI is not specifically designed for radiation-hardened or high-reliability applications. However, Renesas Electronics Corporation offers other products that are designed for such applications. Consult with Renesas or a qualified radiation effects engineer for guidance.
