8T49N488A-000ASGI - Renesas Electronics

Description: The IDT8T49N488I is a quad PLL with FemtoClock® NG technology, integrating low phase noise Frequency Translator / Synthesizer, Jitter attenuator, and alarm and monitoring functions suitable for networking and communications applications. The device has four fully independent PLLs, each PLL is able to generate any output frequency in the 0.98MHz - 312.5MHz range and most output frequencies in the 312.5MHz - 1,300MHz range. A wide range of input reference clocks and operation reference clock may be used as th

Download 8T49N488A-000ASGI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
8T49N488A-000ASGI - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

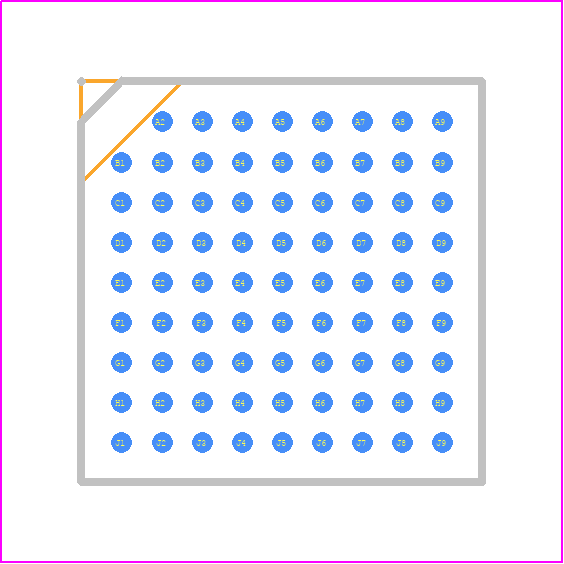

8T49N488A-000ASGI - Renesas Electronics PCB footprint - BGA - BGA - 80-Ball CABGA
click to zoom
3D Models
8T49N488A-000ASGI - Renesas Electronics - 3D model - BGA - 80-Ball CABGA
click to zoom

8T49N488A-000ASGI Details

  • Manufacturer Part Number:

    8T49N488A-000ASGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    CABGA

  • Pin Count:

    80

  • Manufacturer Package Code:

    ASG80

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e1

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    TIN SILVER COPPER

8T49N488A-000ASGI Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN4393EJ0100) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The 8T49N488A-000ASGI can be configured using the Renesas ClockControl software tool, which allows users to select the desired clock frequency and generate the corresponding register settings. The tool also provides a simulation environment to verify the clock tree configuration.
  • The 8T49N488A-000ASGI has an operating temperature range of -40°C to +85°C, but it's recommended to check the specific temperature range for the desired application and to consult with Renesas support for any custom temperature requirements.
  • Renesas provides a troubleshooting guide in their application note (R01AN4394EJ0100) which includes common issues, symptoms, and solutions. Additionally, Renesas support can be contacted for further assistance and to request custom support for specific issues.
  • Yes, the 8T49N488A-000ASGI is compatible with lead-free soldering and is RoHS compliant. However, it's recommended to follow the recommended soldering profile and guidelines provided by Renesas to ensure reliable assembly and operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

8T49N488A-000ASGI Overview

Use the download button to access the 8T49N488A-000ASGI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 8T49N, or try a keyword search, such as Clock Drivers
