8V97003NLGI - Renesas Electronics

Description: The 8V97003 is a high-performance wideband microwave Synthesizer / Phase Lock Loop (PLL) that generates output frequencies up to 18GHz from an integrated Voltage Controlled Oscillator (VCO) offering an octave of frequency tuning range. The device  offers a high-performance 32-bit fractional feedback divider and an output divider to allow users to fully benefit from the wideband characteristics of the VCO. The device's figure of merit (FOM) of -236dBc/Hz and the excellent VCO performance allow for very low p

Download 8V97003NLGI Model

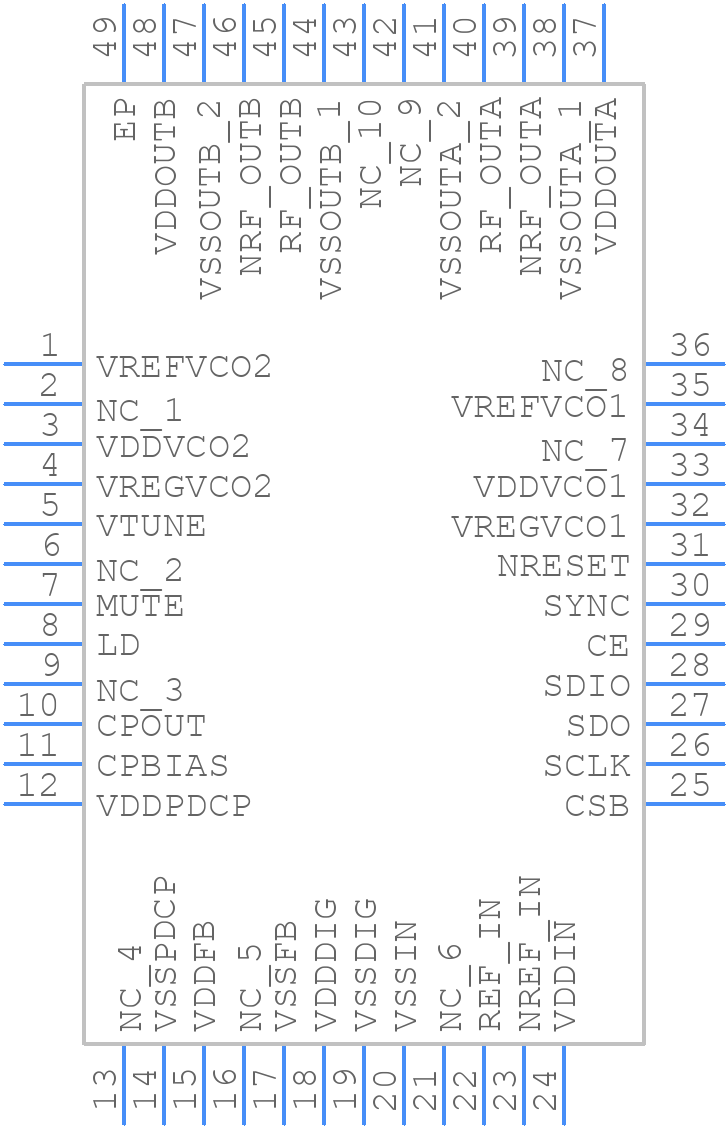

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
8V97003NLGI - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-VFQFPN,
click to zoom
3D Models
8V97003NLGI - Renesas Electronics  - 3D model - Quad Flat No-Lead - 48-VFQFPN,
click to zoom

8V97003NLGI Details

  • Manufacturer Part Number:

    8V97003NLGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Pin Count:

    48

  • Manufacturer Package Code:

    NLG48P3

  • Country Of Origin:

    Mainland China, Taiwan

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2020-09-29

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin (Sn)

8V97003NLGI Frequently Asked Questions (FAQs)

  • A good PCB layout for the 8V97003NLGI involves keeping the clock input traces as short as possible, using a solid ground plane, and minimizing the distance between the crystal oscillator and the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper power and decoupling, use a high-quality power supply with low noise and ripple. Add decoupling capacitors (e.g., 0.1uF and 10uF) as close to the device as possible, and use a 10kΩ resistor in series with the power supply to prevent voltage spikes.
  • The 8V97003NLGI has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad if the device will be operating in a high-temperature environment. Also, avoid overheating during soldering and rework.
  • To troubleshoot clock output issues, check the crystal oscillator circuit for proper termination and loading. Verify the clock input frequency and amplitude meet the datasheet specifications. Use an oscilloscope to inspect the clock output waveform for distortion or jitter. If issues persist, try replacing the crystal oscillator or checking for PCB layout issues.
  • To minimize EMI and RFI, use a shielded enclosure and ensure the PCB layout is designed to reduce radiation. Use a common-mode choke or ferrite bead on the power supply lines, and consider adding EMI filters or shielding to the clock input and output lines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

8V97003NLGI Overview

Use the download button to access the 8V97003NLGI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 8V970, or try a keyword search, such as PLL or Frequency Synthesis Circuits
