Part Image

9-1393480-9 - TE Connectivity

Description: 9 Way r/a Eurostyle D Skt, 4-40U Bolts

Download 9-1393480-9 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

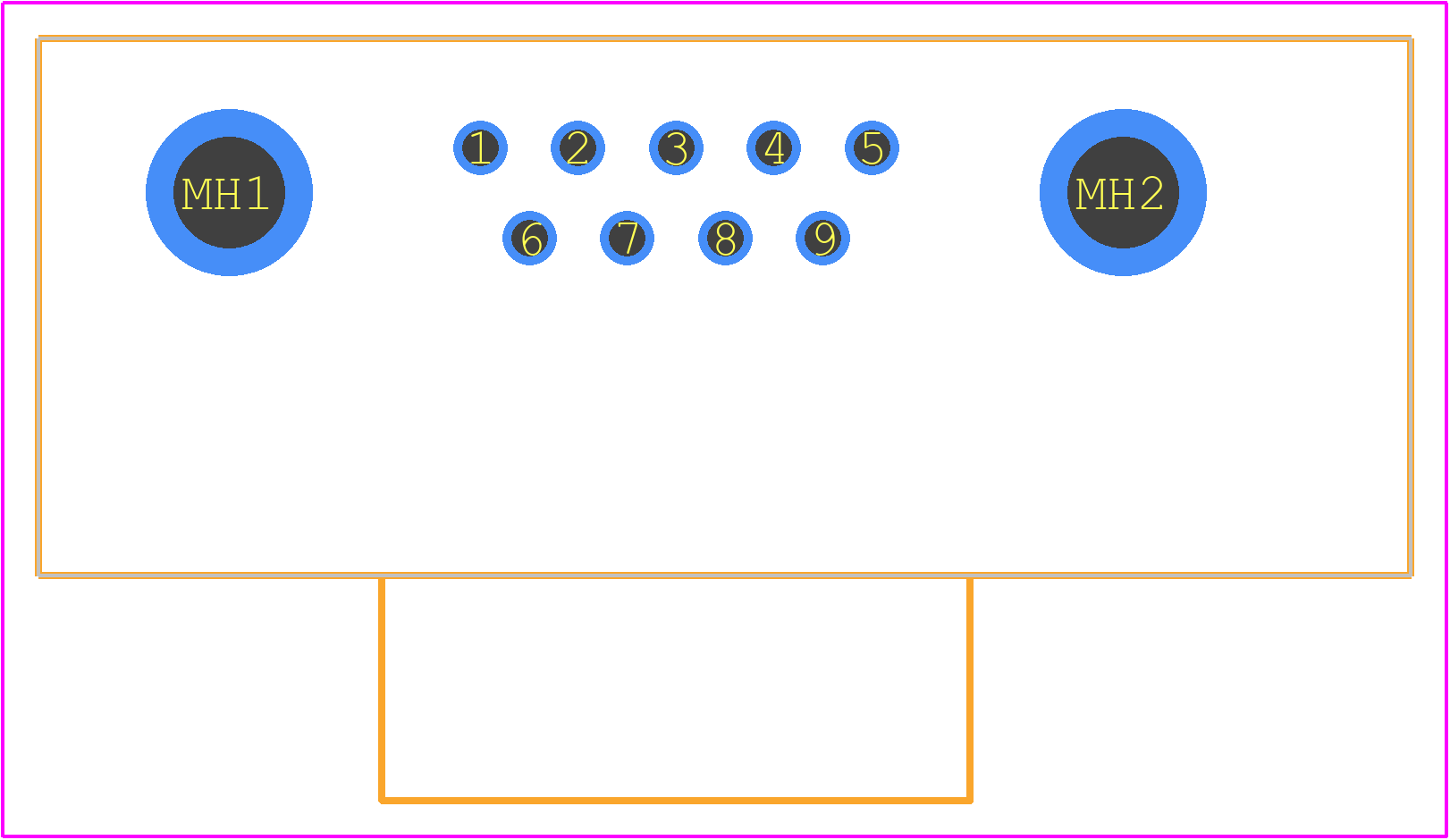

9-1393480-9 - TE Connectivity PCB footprint - Other - Other - 9-1393480-9-1
click to zoom
3D Models
9-1393480-9 - TE Connectivity  - 3D model - Other - 9-1393480-9-1
click to zoom

9-1393480-9 Details

  • Manufacturer Part Number:

    9-1393480-9

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    not_compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    27 Weeks

  • Manufacturer:

    TE Connectivity

  • Risk Rank:

    2.2

  • YTEOL:

    8.5

  • Additional Feature:

    AMPLIMITE

  • Board Mounting Option:

    BOARD LOCK

  • Body Breadth:

    0.509 inch

  • Body Depth:

    0.591 inch

  • Body Length:

    1.227 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Design:

    PREASSEM CONN

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    STAGGERED

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    YES

  • Durability:

    250 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    GRAY

  • Insulator Material:

    POLYETHYLENE/PBT-POLYESTER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    2.2A

  • Mating Contact Pitch:

    0.108 inch

  • Mating Contact Row Spacing:

    0.112 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    #4-40UNC

  • Mounting Option 2:

    SCREWLOCKS

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.54 mm

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    2.2 A

  • Reference Standard:

    DIN 41652,

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Shell Size:

    1/E

  • Terminal Length:

    0.126 inch

  • Terminal Pitch:

    2.74 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

9-1393480-9 Overview

Use the download button to access the 9-1393480-9 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9-139, or try a keyword search, such as D Type Connectors
