902-9040 footprint, schematic symbol and 3D model by Amphenol

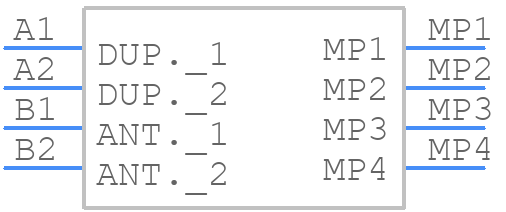

Symbol

click to zoom

PCB Footprints

902-9040 - Amphenol PCB footprint - Other - Other - 902-9040-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 902-9040
Part Number 902-9040
Manufacturer Amphenol
Pin Count 8
Part Category Connector
Package Category Other
Footprint Name Other - 902-9040-4
Released Date Feb 18, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

902-9040 Details

Manufacturer Part Number:
902-9040
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Factory Lead Time:
10 Weeks
Manufacturer:
Amphenol Corporation
Body Breadth:
0.118 inch
Body Length:
0.118 inch
Body/Shell Style:
JACK
Characteristic Impedance:
50 Ω
Connector Type:
RF CONNECTOR
Contact Gender:
FEMALE
Coupling Type:
SNAP
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insertion Loss:
0.2 dB
Insulator Material:
POLYTETRAFLUOROETHYLENE
MIL Conformance:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Operating Frequency-Max:
6 GHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Shell Finish:
NICKEL
Shell Material:
COPPER ALLOY
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
1
VSWR:
1.4

902-9040 Frequently Asked Questions (FAQs)

The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the screw threads to ensure proper mating and to prevent damage to the connector.
Yes, the 902-9040 connector is designed to withstand high-vibration environments. However, it's recommended to follow Amphenol's guidelines for vibration testing and to consult with their application engineers for specific requirements.
The 902-9040 connector is rated for operation in temperatures ranging from -55°C to 125°C (-67°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
The 902-9040 connector is designed to be resistant to corrosion and can withstand exposure to saltwater and certain chemicals. However, it's crucial to consult Amphenol's documentation and application engineers to determine the connector's suitability for specific harsh environments.
The 902-9040 connector is designed to accommodate cables with a diameter of 0.125 inches (3.18 mm) to 0.250 inches (6.35 mm). It's recommended to use cables with a temperature rating of 150°C (302°F) or higher to ensure reliable performance.

Trust Checks

Community Provided

System Verified

Community Approved

902-9040 Overview

Use the download button to access the 902-9040 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 902-9, or try a keyword search, such as Other RF Connectors
