Renesas provides a recommended PCB layout guide in their application note (R01AN3601EJ0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement.
Renesas recommends using an external overcurrent protection circuit, such as a fuse or a dedicated overcurrent protection IC, to prevent damage to the device. The datasheet provides guidelines for selecting the appropriate overcurrent protection component.
Although the datasheet doesn't specify a maximum voltage for the EN pin, Renesas recommends keeping it within the range of 0V to VCC (typically 3.3V or 5V) to ensure proper operation and prevent damage to the device.
The 91730AMLF is rated for operation up to 105°C (TJ), but Renesas recommends derating the device's power dissipation and using thermal design considerations to ensure reliable operation in high-temperature environments.
Renesas provides an I2C troubleshooting guide in their application note (R01AN3602EJ0100) which covers common issues, such as bus contention, clock stretching, and slave address conflicts.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
91730AMLF Overview

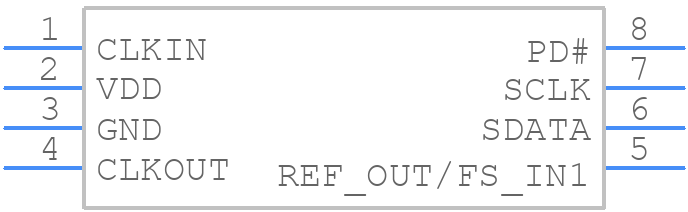

Use the download button to access the 91730AMLF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 91730,
or try a keyword search, such as Clock Generators
