923829-E - TE Connectivity

Description: Hard Metric Connectors ERMET C Male INV 66 L1 - 3,50 A--F V--V 207

Download 923829-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
923829-E - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

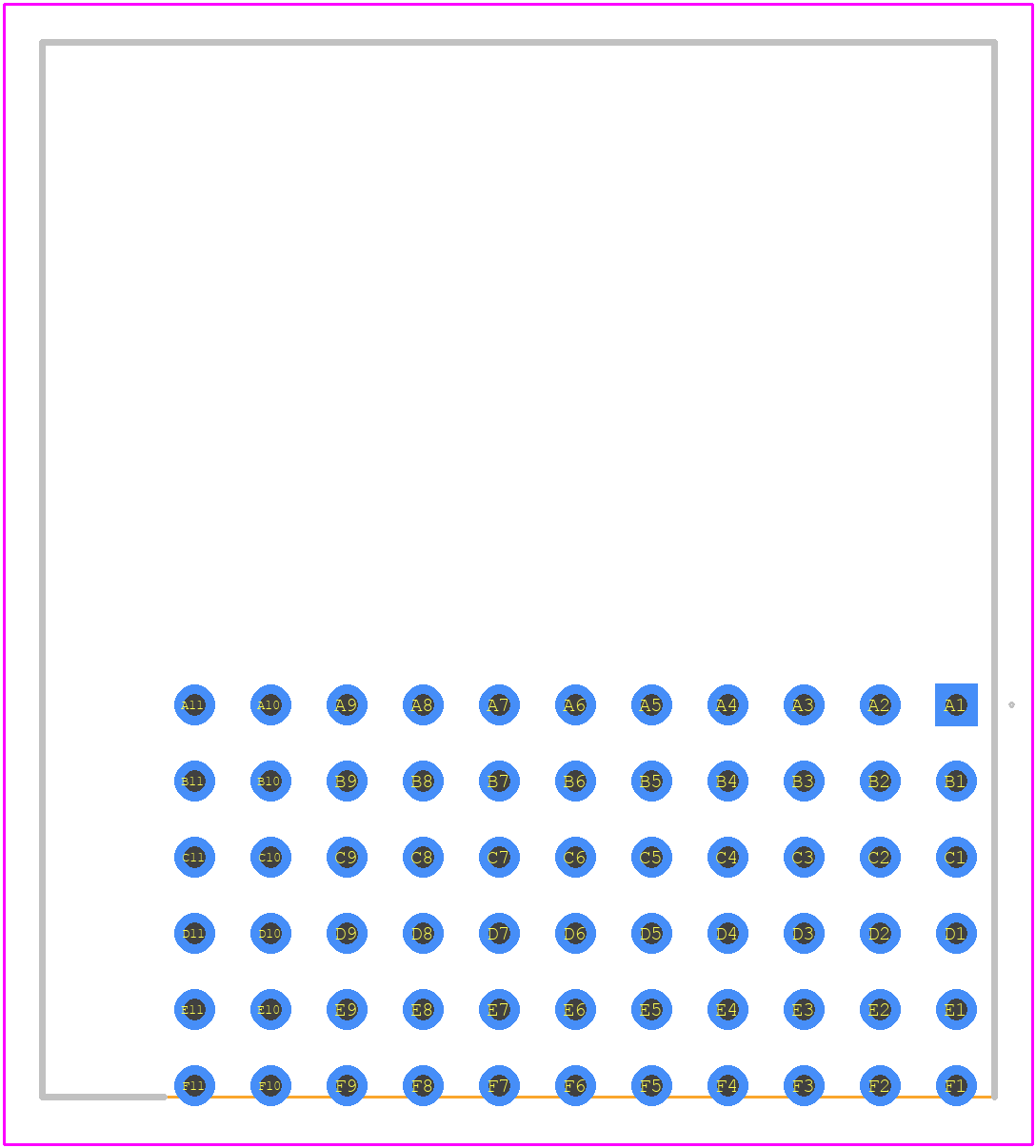

923829-E - TE Connectivity PCB footprint - Other - Other - 923829-E-1
click to zoom
3D Models
923829-E - TE Connectivity - 3D model - Other - 923829-E-1
click to zoom

923829-E Details

  • Manufacturer Part Number:

    923829-E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    22 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Additional Feature:

    11 GROUND SHIELD CONTACTS IN 1 ROW ALSO AVAILABLE

  • Body Breadth:

    0.583 inch

  • Body Depth:

    1.091 inch

  • Body Length:

    0.984 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • DIN Conformance:

    NO

  • Durability:

    500 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    .7506 N

  • Insulation Resistance:

    10000000000 Ω

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.079 inch

  • Mating Contact Row Spacing:

    0.079 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    6

  • Number of Rows Loaded:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.0066 mm

  • Reference Standard:

    UL

  • Terminal Length:

    0.138 inch

  • Terminal Pitch:

    2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    66

  • Withdrawl Force-Min:

    .139 N
