929550-01-36-I - 3M

Description: CONN HEADER .100 SNGL R/A 36POS

Download 929550-01-36-I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

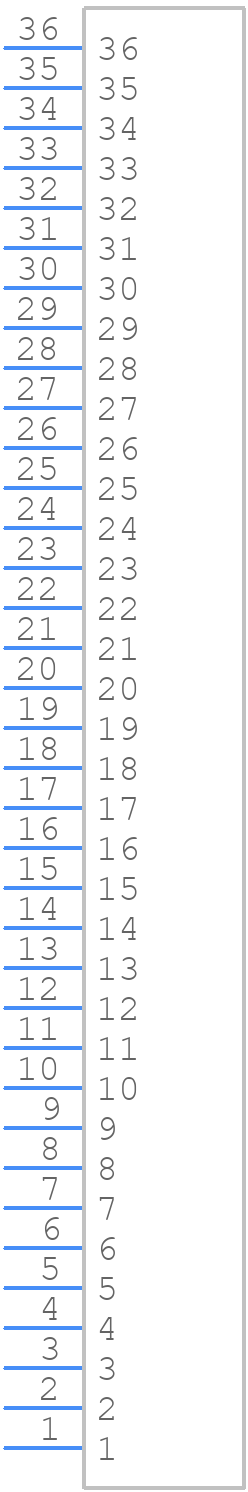

929550-01-36-I - 3M - PCB symbol
click to zoom
PCB Footprints

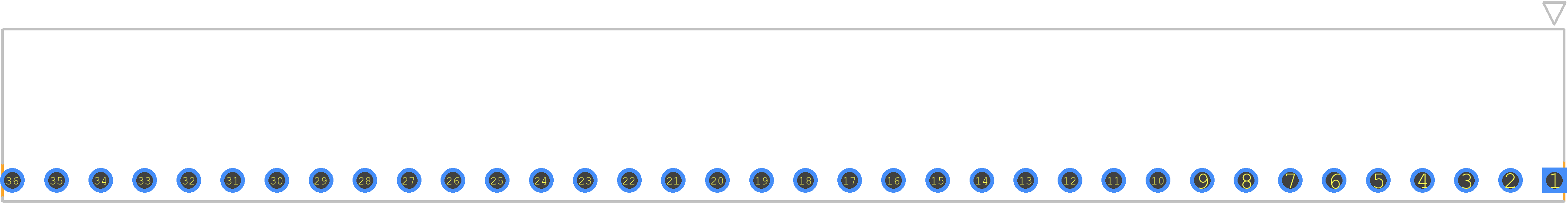

929550-01-36-I - 3M PCB footprint - Other - Other - 3M_929550-01-36-I
click to zoom

929550-01-36-I Details

  • Manufacturer Part Number:

    929550-01-36-I

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    5 Weeks

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    9.1

  • Body Breadth:

    0.125 inch

  • Body Depth:

    0.096 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    1500VAC V

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYESTER

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    10u inch

  • Rated Current (Signal):

    2.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    36

  • UL Flammability Code:

    94V-0

929550-01-36-I Frequently Asked Questions (FAQs)

  • The recommended torque specification for the 929550-01-36-I connector is typically between 0.5 to 1.5 Nm (4.4 to 13.3 in-lbs), but it's best to consult the 3M Interconnect application notes or contact their technical support for specific guidance.
  • The 929550-01-36-I connector is designed to meet the requirements of various industries, including industrial, automotive, and aerospace. While it can withstand some level of vibration and shock, it's essential to consult the datasheet and application notes to ensure it meets the specific requirements of your application.
  • The 929550-01-36-I connector is designed to operate in a temperature range of -40°C to 125°C (-40°F to 257°F). However, it's crucial to consult the datasheet and application notes to ensure it meets the specific environmental requirements of your application.
  • The mating cycle life of the 929550-01-36-I connector is typically around 500 to 1000 mating cycles, depending on the application and environmental conditions. However, it's best to consult the 3M Interconnect application notes or contact their technical support for specific guidance.
  • The 929550-01-36-I connector is designed to be compatible with other 3M Interconnect products, but compatibility with third-party connectors should be verified through testing or consultation with 3M Interconnect's technical support.
