92HD95B2X3NDGXZAX - Tempo Semiconductor

Description: Interface - CODECs 4-Ch HD Audio Codec 2 to 10 Ch 2 ADC/DAC

Download 92HD95B2X3NDGXZAX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

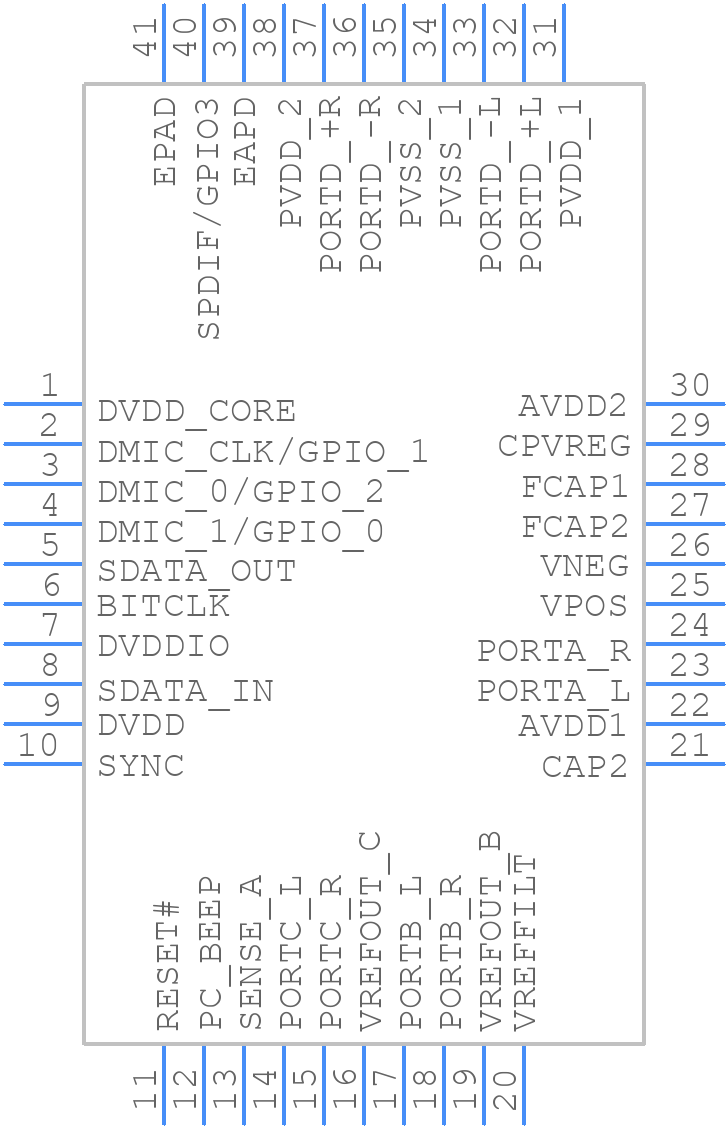

92HD95B2X3NDGXZAX - Tempo Semiconductor - PCB symbol
click to zoom
PCB Footprints
92HD95B2X3NDGXZAX - Tempo Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN40
click to zoom
3D Models
92HD95B2X3NDGXZAX - Tempo Semiconductor - 3D model - Quad Flat No-Lead - QFN40
click to zoom

92HD95B2X3NDGXZAX Details

  • Manufacturer Part Number:

    92HD95B2X3NDGXZAX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    5 X 5 MM, 0.40 MM PITCH, ROHS COMPLIANT, QFN-40

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Tempo Semiconductor Inc

  • Additional Feature:

    IT ALSO REQUIRES 3.3 VOLT ANALOG SUPPLY

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC40,.2SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.05 mm

  • Supply Voltage-Max (Vsup):

    1.98 V

  • Supply Voltage-Min (Vsup):

    1.62 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

92HD95B2X3NDGXZAX Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Ensure that the analog and digital grounds are separated and connected at a single point.
  • Use a metal shield around the device, and ensure that the PCB layout is designed to minimize radiation. Additionally, use a common-mode choke and ferrite beads to filter out electromagnetic interference.
  • The recommended operating temperature range is -40°C to 85°C. However, the device can tolerate temperatures up to 125°C for short periods during manufacturing or testing.
  • The POR and BOR features are enabled by default. To disable them, tie the POR/BOR pin to VCC. Ensure that the power supply is stable and within the recommended voltage range to prevent unwanted resets.
  • Route the clock signal as a differential pair, and terminate it with a 100-ohm resistor. Ensure that the clock signal is not routed near noisy signals or power planes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

92HD95B2X3NDGXZAX Overview

Use the download button to access the 92HD95B2X3NDGXZAX schematic symbol, PCB footprint, and 3D model.
