940C12P22K-F - Cornell Dubilier

Description: Cornell-Dubilier 220nF Polypropylene Capacitor PP 1.2 kV dc, 500 V ac ±10% Tolerance 940C Series

Download 940C12P22K-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
940C12P22K-F - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

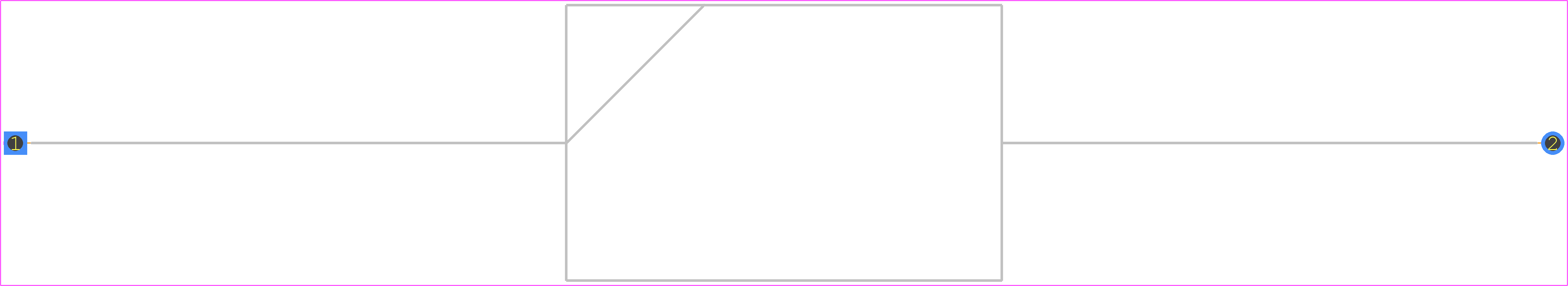

940C12P22K-F - Cornell Dubilier PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - 940C12P22K-F
click to zoom
3D Models
940C12P22K-F - Cornell Dubilier - 3D model - Capacitors, Polarized Axial Diameter Horizontal Mounting - 940C12P22K-F
click to zoom

940C12P22K-F Details

  • Manufacturer Part Number:

    940C12P22K-F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.60

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    7

  • Capacitance:

    0.22 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Diameter:

    21.5 mm

  • Dielectric Material:

    POLYPROPYLENE

  • ESR:

    7 mΩ

  • JESD-609 Code:

    e3

  • Length:

    34 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Positive Tolerance:

    10%

  • Rated (AC) Voltage (URac):

    500 V

  • Rated (DC) Voltage (URdc):

    1200 V

  • Ripple Current:

    8400 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

940C12P22K-F Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 940C12P22K-F is 260°C (500°F) for 10 seconds maximum.
  • Yes, the 940C12P22K-F capacitor is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
  • The derating curve for the 940C12P22K-F capacitor can be found in the Cornell Dubilier Electronics Inc application notes or by contacting their technical support team.
  • Yes, the 940C12P22K-F capacitor is designed to withstand high-vibration applications, but it's recommended to consult with Cornell Dubilier Electronics Inc's technical support team to ensure the capacitor meets the specific vibration requirements of your application.
  • The shelf life of the 940C12P22K-F capacitor is 2 years from the date of manufacture, as long as it is stored in its original packaging and under normal environmental conditions.
