940C6P47K-F - Cornell Dubilier

Description: Cap Film 0.47uF 600V PP 10% (15.5 X 34mm) Axial 105C

Download 940C6P47K-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
940C6P47K-F - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

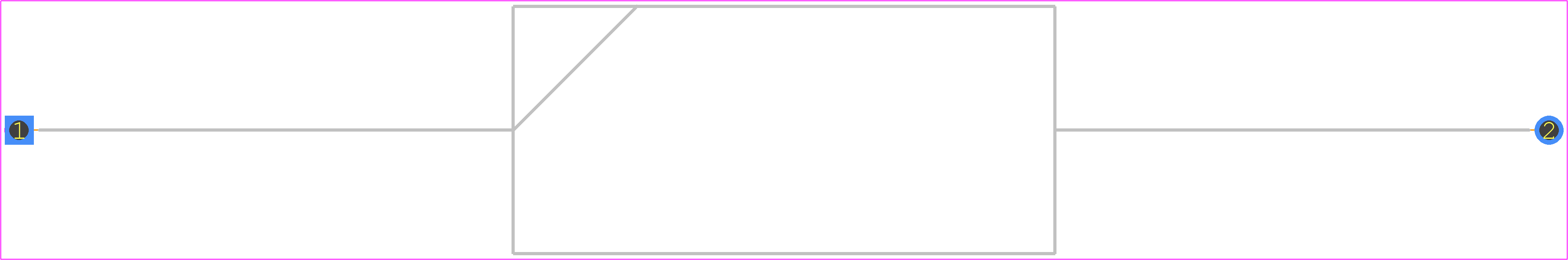

940C6P47K-F - Cornell Dubilier PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - 940C6P47K-F
click to zoom
3D Models
940C6P47K-F - Cornell Dubilier - 3D model - Capacitors, Polarized Axial Diameter Horizontal Mounting - 940C6P47K-F
click to zoom

940C6P47K-F Details

  • Manufacturer Part Number:

    940C6P47K-F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.60

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    6.93

  • Capacitance:

    0.47 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Diameter:

    15.5 mm

  • Dielectric Material:

    POLYPROPYLENE

  • ESR:

    7 mΩ

  • JESD-609 Code:

    e3

  • Length:

    34 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Positive Tolerance:

    10%

  • Rated (AC) Voltage (URac):

    275 V

  • Rated (DC) Voltage (URdc):

    600 V

  • Ripple Current:

    6900 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

940C6P47K-F Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 940C6P47K-F is between 250°C to 260°C for a maximum of 5 seconds.
  • Yes, the 940C6P47K-F is a high-reliability capacitor that meets the requirements of MIL-PRF-123 and is suitable for use in high-reliability applications.
  • Yes, the 940C6P47K-F capacitor is designed to withstand high-vibration environments and meets the requirements of MIL-STD-202, Method 204.
  • The shelf life of the 940C6P47K-F capacitor is 2 years from the date of manufacture, as long as it is stored in its original packaging and under controlled environmental conditions.
  • Yes, the 940C6P47K-F capacitor is RoHS compliant and meets the requirements of the European Union's Directive 2011/65/EU.
