- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 953371-3
- Part Number 953371-3
- Manufacturer TE Connectivity
- Pin Count 18
- Part Category Connector
- Package Category Other

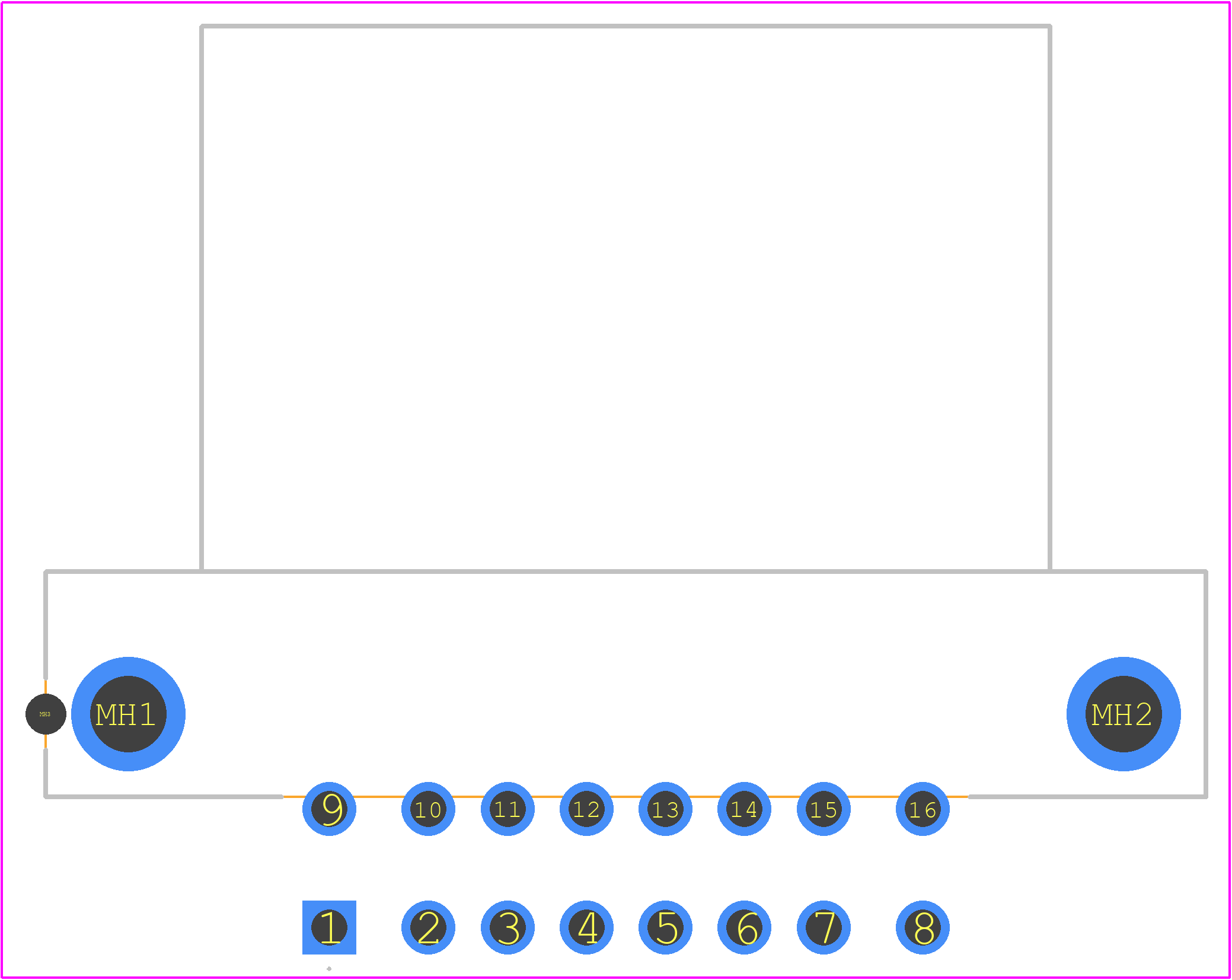

- Footprint Name Other - 953371-3-4
- Released Date Aug 16, 2021
- Last Modified Date Dec 15, 2024 11:20 PM UTC
- Pinout / Pin List Click Here (Member Only)
953371-3 Details
-
Manufacturer Part Number:
953371-3
-
Brand Name:
TE Connectivity
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
TE Connectivity
-
YTEOL:
0
-
Body Breadth:
1.28 inch
-
Body Length:
1.925 inch
-
Connector Type:
COMBINATION LINE CONNECTOR
953371-3 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
-
Yes, the 953371-3 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as transportation, industrial, and aerospace.
-
The 953371-3 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This makes it suitable for use in a wide range of applications, from industrial to automotive and aerospace.
-
Yes, the 953371-3 connector is part of the TE Connectivity AMPSEAL 16 connector family, which offers a range of products with similar features and compatibility. It can be used with other AMPSEAL 16 connectors, headers, and accessories.
-
The 953371-3 connector has an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
953371-3 Overview
Use the download button to access the 953371-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 95337,
or try a keyword search, such as Combination Line Connectors
