967116-1 - TE Connectivity

Description: PCB Mount Header, Vertical, Wire-to-Board, 18 Position, 5 mm [.197 in] Centerline, Fully Shrouded, Tin (Sn), AMP MCP Connector System

Download 967116-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
967116-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

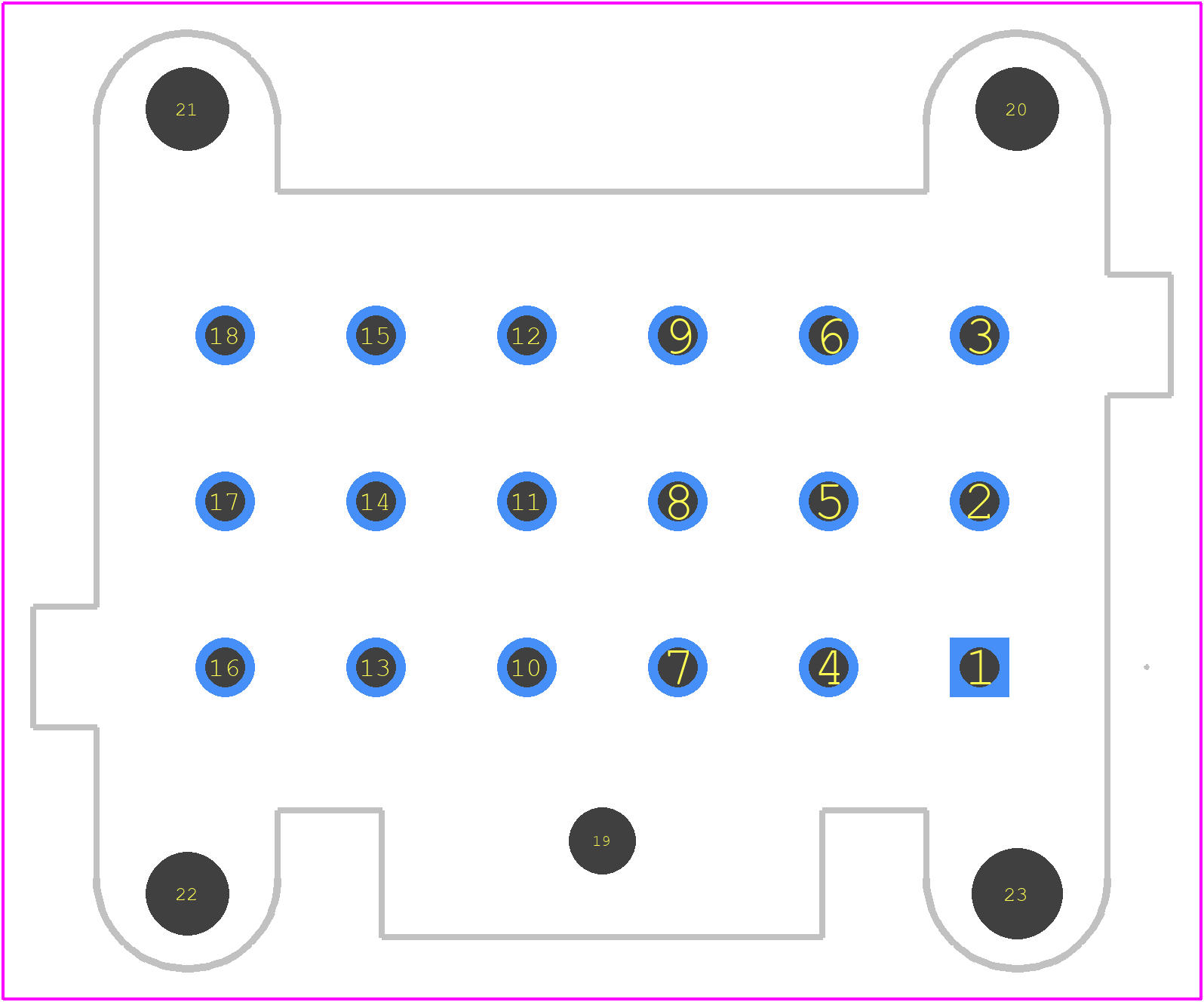

967116-1 - TE Connectivity PCB footprint - Other - Other - 967116-1-1
click to zoom
3D Models
967116-1 - TE Connectivity - 3D model - Other - 967116-1-1
click to zoom

967116-1 Details

  • Manufacturer Part Number:

    967116-1

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    36 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    0.953 inch

  • Body Depth:

    0.814 inch

  • Body Length:

    1.484 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    BLADE PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Terminal Pitch:

    5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    18

967116-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the specific application requirements and follow the recommended torque values to ensure reliable connections.
  • Yes, the 967116-1 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure fastening to prevent connector damage or disconnection.
  • The 967116-1 connector is designed for indoor use, but it can be used in outdoor or harsh environmental conditions with proper sealing and protection. Consult TE Connectivity's environmental sealing options or custom designs for specific requirements.
  • The 967116-1 connector is rated for operation in temperatures ranging from -40°C to 105°C (-40°F to 221°F). However, it's essential to consider the specific application requirements and potential thermal stress on the connector.
  • Yes, the 967116-1 connector is designed to be compatible with other TE Connectivity products and can be used with third-party components. However, ensure compatibility and consult the specific product datasheets and application notes for proper integration.
