9DB102BGILF - Renesas Electronics

Description: The 9DB102 zero-delay buffer supports PCI Express clocking requirements. The 9DB102 is driven by a differential SRC output pair from an IDT CK409/CK410-compliant main clock generator such as the 952601 or 954101. It attenuates jitter on the input clock and has a selectable PLL Band Width to maximize performance in systems with or without Spread- Spectrum clocking.

Download 9DB102BGILF Model

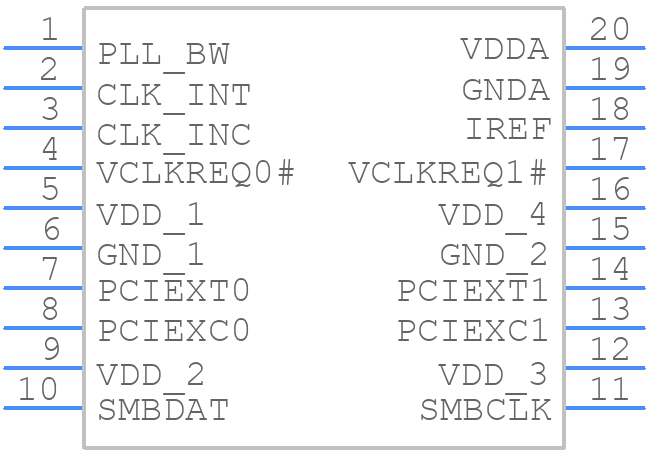

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
9DB102BGILF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PGG20
click to zoom
3D Models
9DB102BGILF - Renesas Electronics  - 3D model - Small Outline Packages - PGG20
click to zoom

9DB102BGILF Details

  • Manufacturer Part Number:

    9DB102BGILF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Manufacturer Package Code:

    PGG20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Family:

    9DB

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Number of True Outputs:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    0.15 ns

  • Propagation Delay (tpd):

    0.15 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.025 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

9DB102BGILF Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the analog input signal. This ensures proper internal biasing and prevents damage to the device.
  • To optimize the analog input signal, ensure it is within the recommended range of 0 to VREF (2.5V typical). Use a low-pass filter to remove high-frequency noise, and consider adding a buffer amplifier to drive the input signal.
  • The recommended clock frequency is between 1 MHz and 4 MHz. However, the device can operate up to 6 MHz, but with reduced performance and increased power consumption.
  • The 9DB102BGILF outputs 10-bit digital data in a serial format. Use a microcontroller or FPGA to receive and process the data. Ensure proper synchronization and data alignment to avoid data corruption.
  • The typical power consumption of the 9DB102BGILF is around 35 mW at 1 Msps, with VCC = 5V and AVCC = 2.5V. However, this can vary depending on the clock frequency, input signal, and operating conditions.
