9DB104BFLFT - Renesas Electronics

Description: 9DB104 is not recommended for new designs.

Download 9DB104BFLFT Model
Schematic

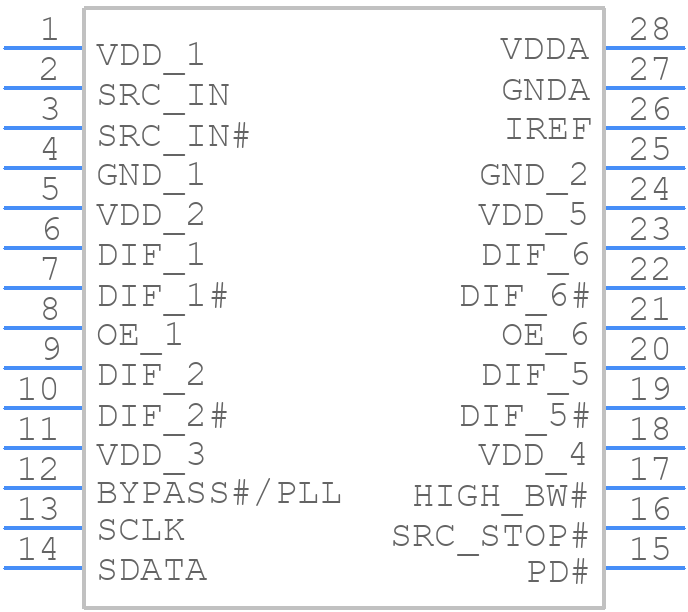

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
9DB104BFLFT - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 209 mil SSOP_21
click to zoom
3D Models
9DB104BFLFT - Renesas Electronics  - 3D model - Small Outline Packages - 209 mil SSOP_21
click to zoom

9DB104BFLFT Details

  • Manufacturer Part Number:

    9DB104BFLFT

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    0.209 INCH, ROHS COMPLIANT, MO-150, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    PYG28

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    9DB

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Number of True Outputs:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.05 ns

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

9DB104BFLFT Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 9DB104BFLFT is -40°C to 125°C.
  • To ensure reliable data transfer, ensure that the clock frequency is within the recommended range, and use a stable clock source. Also, ensure that the data lines are properly terminated and that the signal integrity is maintained.
  • The maximum clock frequency supported by the 9DB104BFLFT is 100 MHz.
  • Follow the recommended power-up and power-down sequencing in the datasheet to ensure proper device operation. Typically, the power supply voltage (VCC) should be applied before the clock signal, and the clock signal should be stable before applying the input signals.
  • Follow good PCB layout and routing practices, such as keeping signal traces short and away from noise sources, using ground planes, and avoiding vias under the device. Also, ensure that the device is properly decoupled and that the power supply is clean and stable.
