9DB106BFLF - Renesas Electronics

Description: The 9DB106 zero-delay buffer supports PCIe Gen1 and Gen2 clocking requirements. The 9DB106 is driven by a differential SRC output pair from an IDT CK410/CK505-compliant main clock generator. It attenuates jitter on the input clock and has a selectable PLL bandwidth to maximize performance in systems with or without Spread-Spectrum clocking. An SMBus interface allows control of the PLL bandwidth and bypass options, while 2 clock request (CLKREQ#) pins make the 9DB106 suitable for Express Card applications.

Download 9DB106BFLF Model

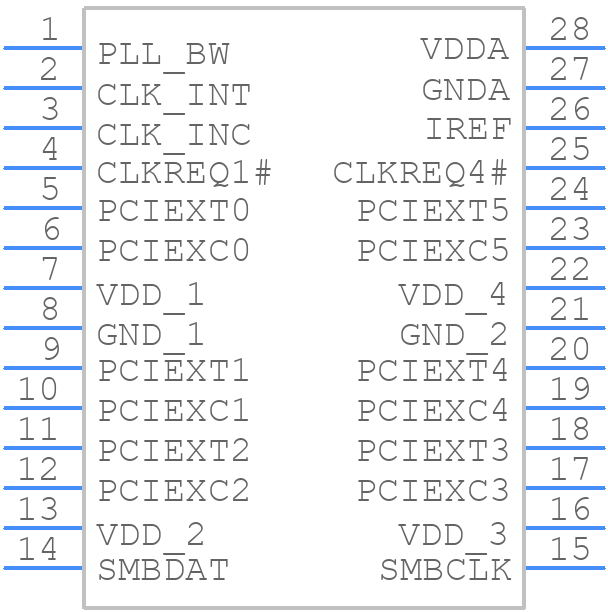

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
9DB106BFLF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 209 mil SSOP-28
click to zoom
3D Models
9DB106BFLF - Renesas Electronics  - 3D model - Small Outline Packages - 209 mil SSOP-28
click to zoom

9DB106BFLF Details

  • Manufacturer Part Number:

    9DB106BFLF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    PYG28

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    9DB

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Number of True Outputs:

    6

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    150 mA

  • Prop. Delay@Nom-Sup:

    0.15 ns

  • Propagation Delay (tpd):

    0.15 ns

  • Same Edge Skew-Max (tskwd):

    0.05 ns

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

9DB106BFLF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes thermal vias, thermal pads, and heat sink recommendations to ensure optimal thermal performance.
  • Renesas recommends using an external overcurrent protection (OCP) circuit, such as a dedicated OCP IC or a discrete component solution, to protect the device from excessive current. The datasheet provides guidelines for OCP implementation.
  • Renesas recommends a specific power-up sequence to ensure proper device operation. The sequence typically involves powering up the VCC pin first, followed by the VDD pin, and then the input signals. The datasheet provides a detailed power-up sequence diagram.
  • Renesas provides troubleshooting guidelines in their application notes, which include checking the clock signal frequency, amplitude, and jitter, as well as verifying the clock signal routing and termination on the PCB.
  • The 9DB106BFLF has an operating temperature range of -40°C to +125°C, but Renesas recommends derating the device's performance at higher temperatures to ensure reliability and prevent thermal shutdown.
