9DB202CGLF - Renesas Electronics

Description: The 9DB202 is a high performance 1-to-2 Differential-to-HCSL Jitter Attenuator designed for use in PCI Express®™ systems. In some PCI Express®™ systems, such as those found in desktop PCs, the PCI Express®™ clocks are generated from a low bandwidth, high phase noise PLL frequency synthesizer. In these systems, a jitter-attenuating device may be necessary in order to reduce high frequency random and deterministic jitter components from the PLL synthesizer and from the system board. The 9DB202 has two PLL ban

Download 9DB202CGLF Model

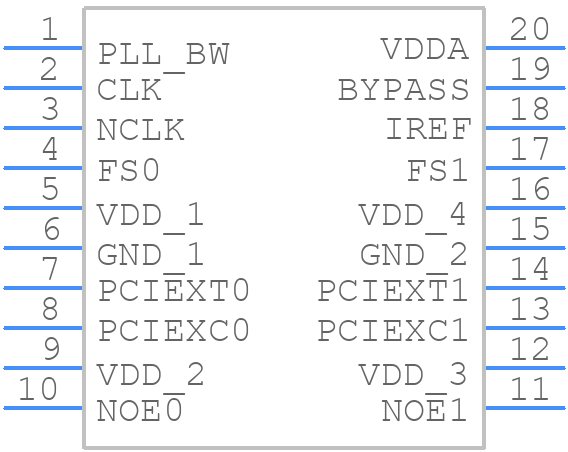

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
9DB202CGLF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - (20-pin TSSOP, 173 mil Bod
click to zoom
3D Models
9DB202CGLF - Renesas Electronics  - 3D model - Small Outline Packages - (20-pin TSSOP, 173 mil Bod
click to zoom

9DB202CGLF Details

  • Manufacturer Part Number:

    9DB202CGLF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Manufacturer Package Code:

    PGG20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Terminal Finish:

    Tin (Sn)

  • uPs/uCs/Peripheral ICs Type:

    JITTER ATTENUATOR
