9DB403DFILF - Renesas Electronics

Description: The 9DB403 is compatible with the Intel DB400v2 Differential Buffer Specification. This buffer provides 4 PCI Express® Gen2 clocks. The 9DB403 is driven by a differential output pair from a CK410B+, CK505 or CK509B main clock generator.

Download 9DB403DFILF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

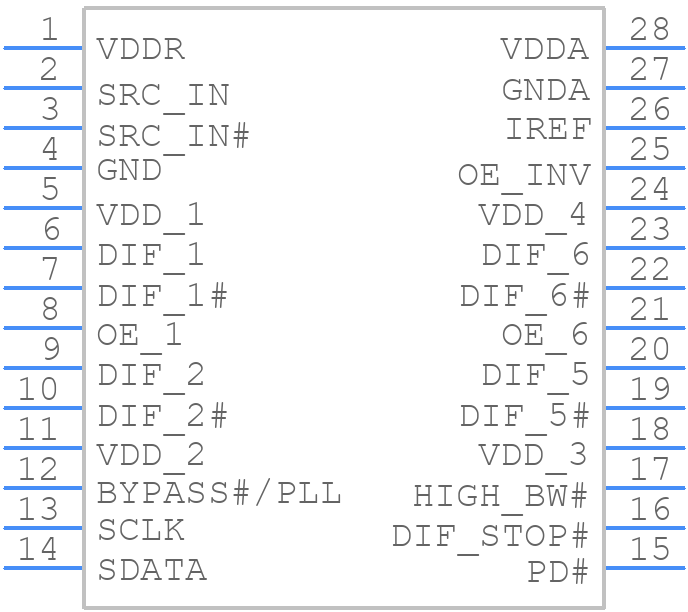

9DB403DFILF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
9DB403DFILF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PYG28
click to zoom
3D Models
9DB403DFILF - Renesas Electronics - 3D model - Small Outline Packages - PYG28
click to zoom

9DB403DFILF Details

  • Manufacturer Part Number:

    9DB403DFILF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • Manufacturer Package Code:

    PYG28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Family:

    9DB

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.05 ns

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

9DB403DFILF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application notes, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The 9DB403DFILF has a built-in overcurrent protection feature, but it's recommended to add external overcurrent protection circuitry to ensure reliable operation. Renesas provides guidance on implementing overcurrent protection in their application notes and design guides.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, Renesas recommends derating the device's performance at extreme temperatures. It's essential to consult the application notes and thermal management guidelines for optimal performance.
  • Renesas provides troubleshooting guides and FAQs on their website, which cover common issues and provide step-by-step debugging procedures. Additionally, engineers can consult the device's errata sheet and application notes for specific guidance.
  • Yes, Renesas recommends following EMI/EMC guidelines and best practices to ensure the device operates within regulatory limits. This includes using shielding, filtering, and proper PCB layout to minimize electromagnetic interference.
