Description:The 9DB403 is compatible with the Intel DB400v2 Differential Buffer Specification. This buffer provides 4 PCI Express® Gen2 clocks. The 9DB403 is driven by a differential output pair from a CK410B+, CK505 or CK509B main clock generator.
Renesas provides a recommended PCB layout guide in their application note (R01AN4461EJ0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement, to ensure optimal thermal performance.
Renesas recommends using an external overcurrent protection circuit, such as a fuse or a dedicated overcurrent protection IC, to prevent damage to the device. The datasheet provides guidelines for selecting the appropriate overcurrent protection component.
Renesas recommends a specific power-up sequence to ensure proper device operation. The sequence involves powering up the VCC pin first, followed by the VDD pin, and then the input signals. The datasheet provides a detailed power-up sequence diagram.
Renesas provides an I2C troubleshooting guide in their application note (R01AN4461EJ0100) which covers common issues, such as bus contention, clock stretching, and slave address conflicts, along with debugging techniques and tools.
The 9DB403DFLF has an operating temperature range of -40°C to +125°C, as specified in the datasheet. However, it's essential to consider the device's thermal design and PCB layout to ensure reliable operation within this range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
9DB403DFLF Overview

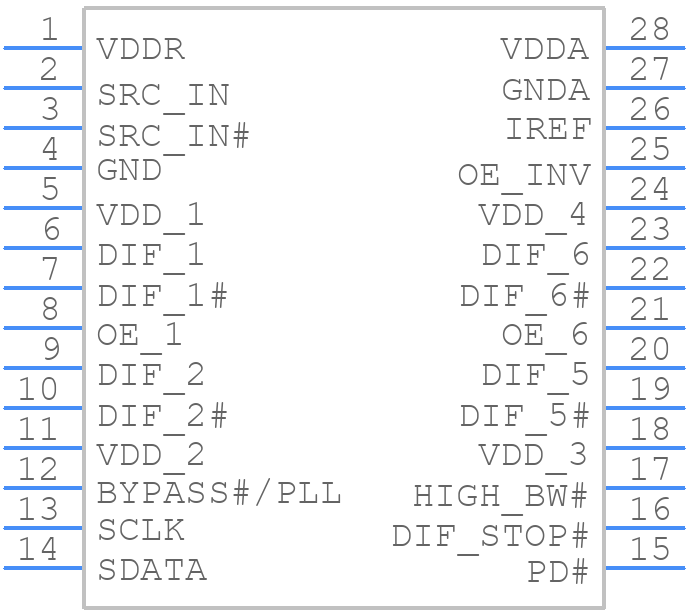

Use the download button to access the 9DB403DFLF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9DB40,
or try a keyword search, such as Clock Drivers
