9DB803DFLFT - Renesas Electronics

Description: The 9DB803 is compatible with the Intel DB800v2 Differential Buffer Specification. This buffer provides 8 PCI Express Gen2 clocks. The 9DB803 is driven by a differential output pair from a CK410B+, CK505 or CK509B main clock generator.

Download 9DB803DFLFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

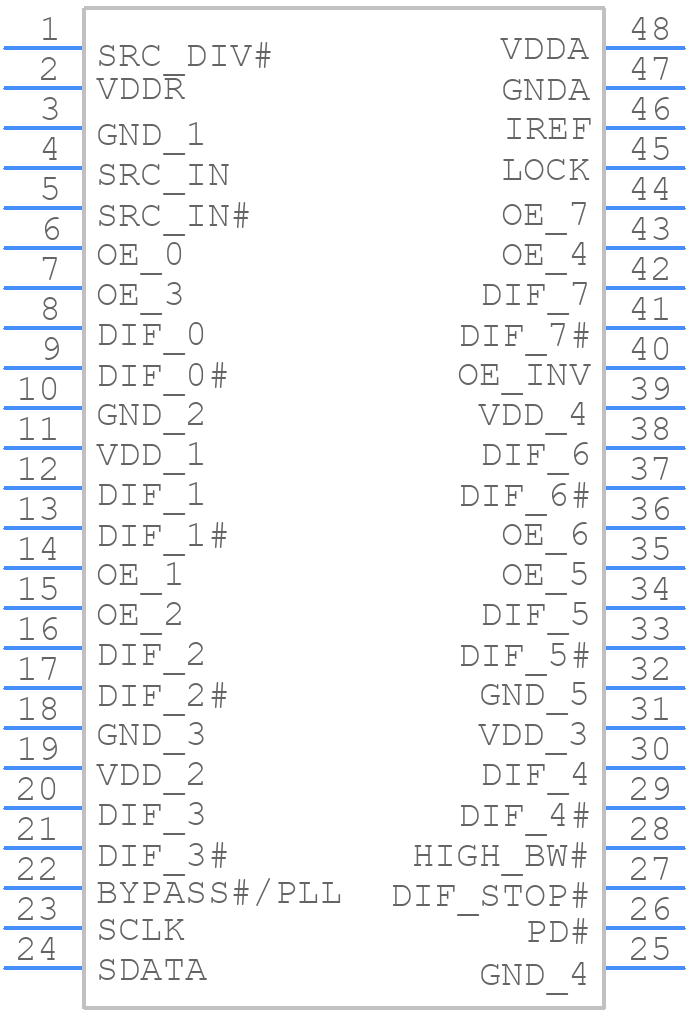

9DB803DFLFT - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

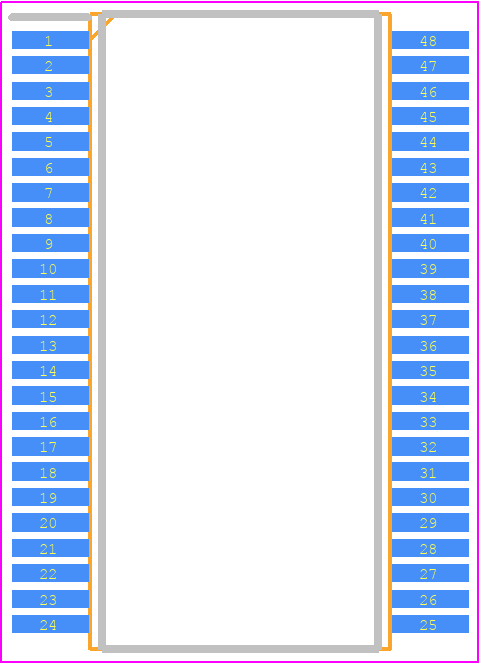

9DB803DFLFT - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 300 mil SSOP
click to zoom
3D Models
9DB803DFLFT - Renesas Electronics - 3D model - Small Outline Packages - 300 mil SSOP
click to zoom

9DB803DFLFT Details

  • Manufacturer Part Number:

    9DB803DFLFT

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    48

  • Manufacturer Package Code:

    PVG48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Family:

    9DB

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e3

  • Length:

    15.875 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of True Outputs:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP48,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.05 ns

  • Seated Height-Max:

    2.8 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

9DB803DFLFT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a dedicated ground plane and thermal vias is recommended for optimal thermal performance. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern around the device.
  • Implement a robust power-on reset circuit, ensure a stable clock source, and use a reliable voltage regulator. Also, consider using a thermistor or thermocouple to monitor temperature and adjust system parameters accordingly.
  • The external clock source should have a frequency of 12 MHz ±100 ppm, with a duty cycle of 40-60%. The clock signal should have a rise and fall time of 2-5 ns, and the clock source should be able to drive a load of 20 pF.
  • Use the device's built-in power management features, such as the Low Power Mode (LPM) and the Power Down Mode (PDM). Also, consider using a power gating technique to reduce power consumption in idle modes.
  • Implement ESD protection diodes on all input/output pins, and consider using a TVS (Transient Voltage Suppressor) device to protect against voltage surges. Ensure that the PCB design includes a solid ground plane and a low-impedance path to ground for ESD protection.
