9DBL0252CKILF - Renesas Electronics

Description: The 9DBL0252 2-output zero-delay/fan-out buffer is a 3.3V member of Renesas' Full-Featured PCIe family. The 9DBL0252 supports PCIe Gen1 through Gen5 and both Common and Independent Reference Clock architectures.For information regarding evaluation boards and material, please contact your local sales representative.

Download 9DBL0252CKILF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

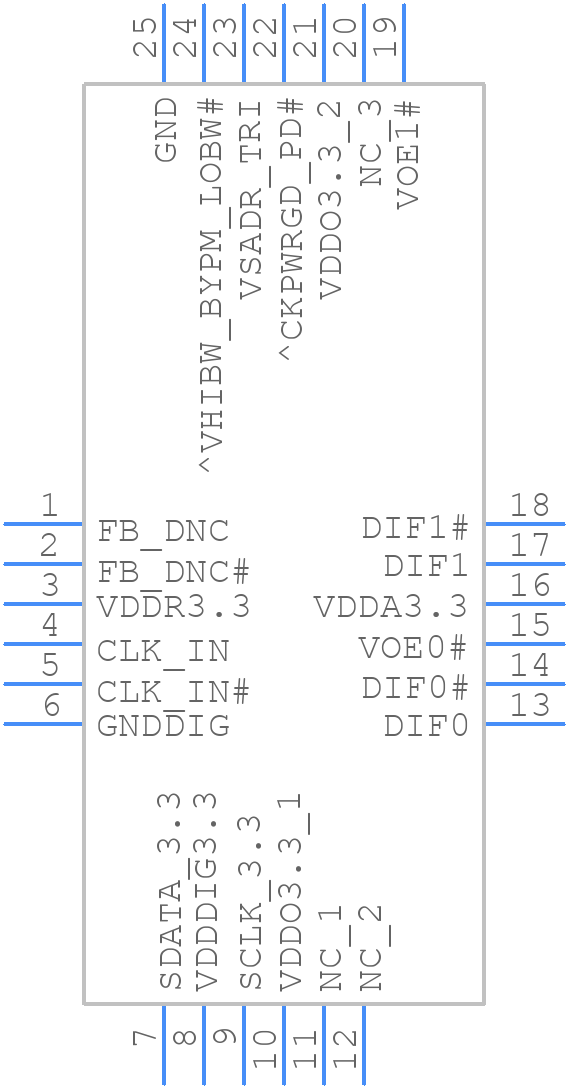

9DBL0252CKILF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
9DBL0252CKILF - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-VFQFPN 4.0 x 4.0 x 0.90 mm Body, 0.5mm Pitch, Epad 2.60 x 2.60 mm_
click to zoom
3D Models
9DBL0252CKILF - Renesas Electronics - 3D model - Quad Flat No-Lead - 24-VFQFPN 4.0 x 4.0 x 0.90 mm Body, 0.5mm Pitch, Epad 2.60 x 2.60 mm_
click to zoom

9DBL0252CKILF Details

  • Manufacturer Part Number:

    9DBL0252CKILF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    15

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin (Sn)

9DBL0252CKILF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN3601EU0100) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • Renesas recommends a specific power sequencing scheme to ensure proper startup and operation of the device. This involves powering up the VCC and VCCIO pins in a specific order, followed by the VREF pin. Refer to the application note (R01AN3601EU0100) for detailed guidelines.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the device's performance and accuracy may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to 100°C for optimal performance.
  • Renesas recommends using a thermal pad or heat sink to dissipate heat generated by the device. The application note (R01AN3601EU0100) provides guidelines for thermal management, including thermal pad design and heat sink selection.
  • Renesas recommends using a high-quality clock signal with a jitter of less than 100 ps to ensure optimal performance and minimize phase noise. A clock signal with a frequency of 25 MHz or higher is recommended for optimal performance.
