Description:The 9DBL0442 4-output zero-delay/fan-out buffer is a 3.3V member of Renesas' Full-Featured PCIe family. The 9DBL0442 supports PCIe Gen1 through Gen5 and both Common and Independent Reference Clock architectures. For information regarding evaluation boards and material, please contact your local sales representative.
Renesas provides a recommended PCB layout guide in their application notes (e.g., AN9834) and design guides (e.g., DG0094). It's essential to follow these guidelines to ensure optimal performance, minimize noise, and reduce EMI.
The 9DBL0442CKILF can be configured for use with various clock sources, such as a crystal oscillator, external clock, or PLL. Refer to the datasheet's 'Clock Configuration' section and the 'Clock Generation' chapter in the user manual (UM0094) for detailed information on configuration options and register settings.
The 9DBL0442CKILF has a maximum junction temperature (Tj) of 150°C. To ensure reliable operation, it's essential to implement proper thermal management, such as using a heat sink, thermal interface material, and ensuring good airflow. Refer to the datasheet's 'Thermal Characteristics' section and the 'Thermal Design' chapter in the user manual (UM0094) for more information.
Renesas provides a troubleshooting guide in their application notes (e.g., AN9834) and user manual (UM0094). Common issues can be resolved by checking the clock configuration, power supply, and PCB layout. Additionally, Renesas offers a range of development tools, such as the Renesas Starter Kit, to help debug and troubleshoot issues.
The 9DBL0442CKILF is designed to meet the requirements of various industries, including automotive, industrial, and aerospace. Renesas provides information on radiation hardness and reliability in their datasheet and application notes (e.g., AN9834). The device is also qualified according to various standards, such as AEC-Q100 and ISO 26262.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
9DBL0442CKILF Overview

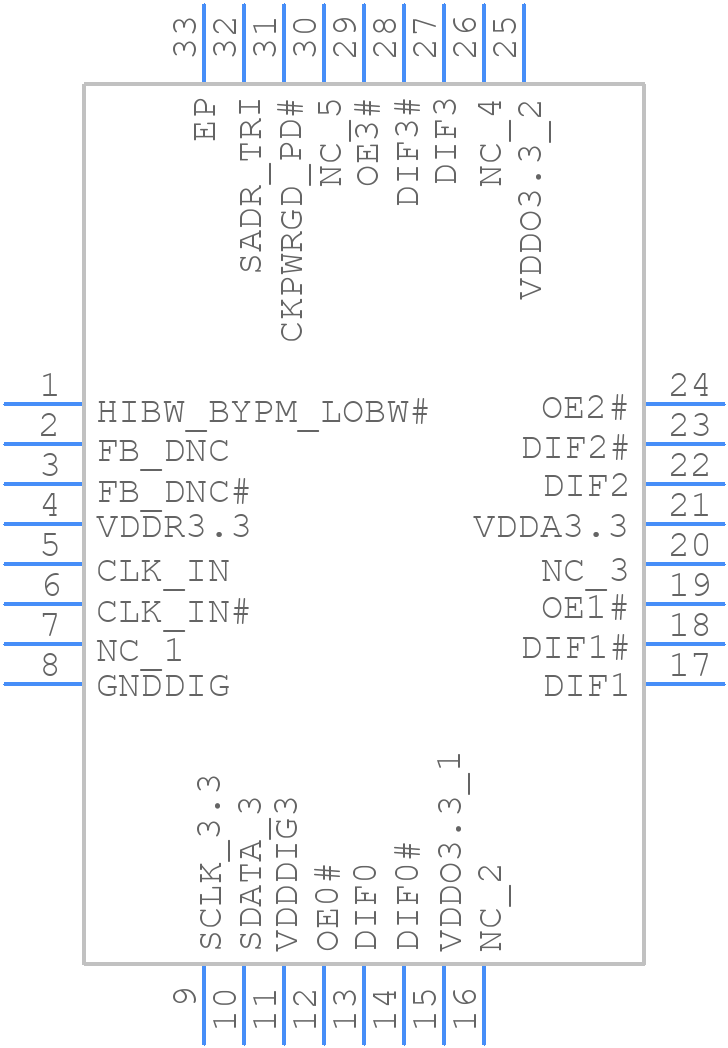

Use the download button to access the 9DBL0442CKILF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9DBL0,
or try a keyword search, such as Clock Drivers
