9DBL0741BKILF - Renesas Electronics

Description: The 9DBL0741 device is a member of IDT's 3.3V full-featured PCIe clock family. The 9DBL0741 device supports PCIe Gen1-4 Common Clocked (CC) and PCIe Separate Reference Independent Spread (SRIS) systems. The device's integrated output terminations provide a direct connection to 100Ω transmission lines. The 9DBL07P1 can be factory programmed with a user-defined power up default SMBus configuration.For information regarding evaluation boards and material, please contact your local IDT sales representative.

Download 9DBL0741BKILF Model

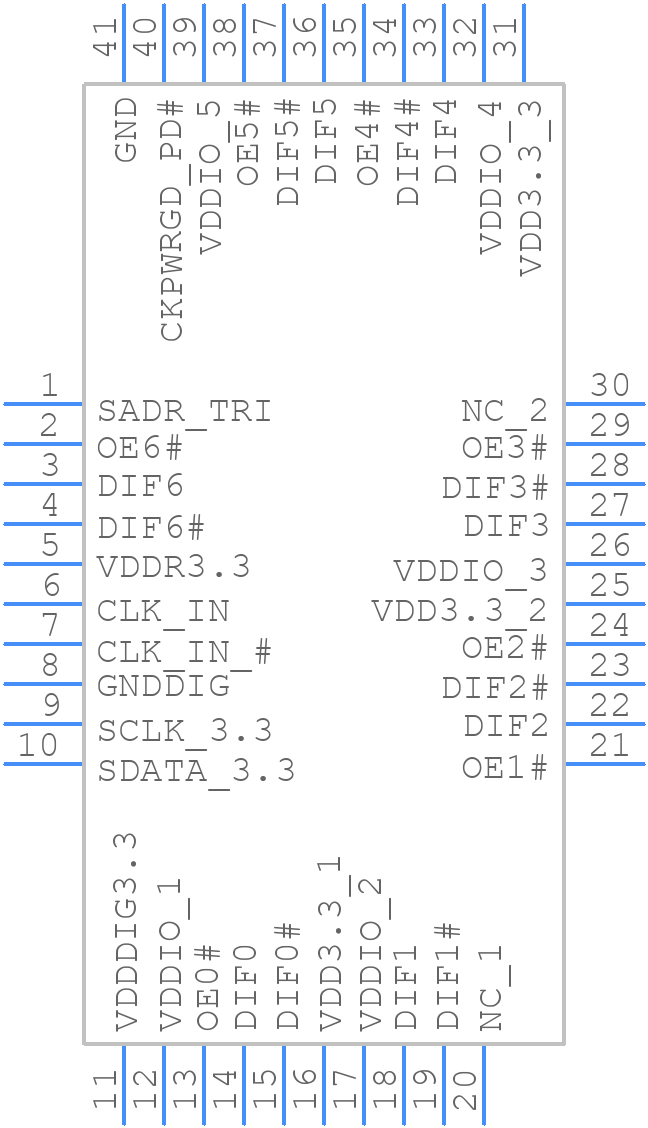

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
9DBL0741BKILF - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40 LD QFN
click to zoom
3D Models
9DBL0741BKILF - Renesas Electronics  - 3D model - Quad Flat No-Lead - 40 LD QFN
click to zoom

9DBL0741BKILF Details

  • Manufacturer Part Number:

    9DBL0741BKILF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Package Description:

    VFQFPN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    NDG40P2

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Family:

    9DBL

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Number of True Outputs:

    7

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.2SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    16 mA

  • Prop. Delay@Nom-Sup:

    4 ns

  • Propagation Delay (tpd):

    4 ns

  • Same Edge Skew-Max (tskwd):

    0.05 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • fmax-Min:

    200 MHz

9DBL0741BKILF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application notes (e.g., AN9834) and design guides (e.g., DG0094). It's essential to follow these guidelines to ensure optimal performance, minimize noise, and reduce EMI.
  • Renesas recommends using a thermal pad or heat sink to dissipate heat. The device's thermal resistance (θJA) is specified in the datasheet. Ensure proper thermal design, including thermal vias, to keep the junction temperature within the recommended operating range.
  • The input clock signal should meet the specified frequency, amplitude, and jitter requirements outlined in the datasheet. Additionally, ensure the clock signal is clean and free from noise to prevent PLL lock issues or other performance degradation.
  • Renesas provides power-saving modes and configuration options in the datasheet. Implement these modes, such as the 'Low Power Mode' or 'Sleep Mode', to reduce power consumption. Additionally, optimize the system design to minimize power consumption during idle periods.
  • Renesas provides guidelines for PLL configuration and clock distribution in the datasheet and application notes. Ensure proper PLL settings, including the loop filter, and clock distribution to minimize jitter and ensure stable operation.
