9DBL0841CKILF - Renesas Electronics

Description: The 9DBL0841 8-output zero-delay/fan-out buffer is a 3.3V member of Renesas' Full-Featured PCIe family. The 9DBL0841 supports PCIe Gen1 through Gen5 and both Common and Independent Reference Clock architectures. For information regarding evaluation boards and material, please contact your local sales representative.

Download 9DBL0841CKILF Model

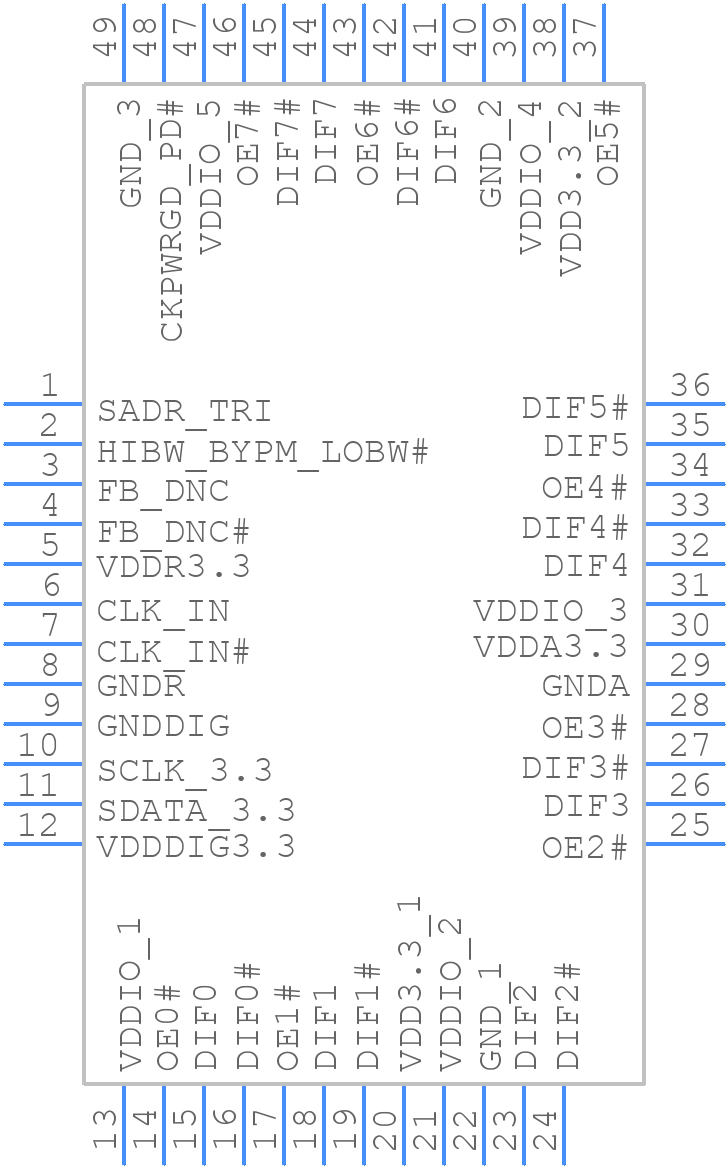

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
9DBL0841CKILF - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-VFQFPN 6.0 x 6.0 x 0.9 mm Body, 0.4mm Pitch
click to zoom
3D Models
9DBL0841CKILF - Renesas Electronics  - 3D model - Quad Flat No-Lead - 48-VFQFPN 6.0 x 6.0 x 0.9 mm Body, 0.4mm Pitch
click to zoom

9DBL0841CKILF Details

  • Manufacturer Part Number:

    9DBL0841CKILF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    15

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin (Sn)

9DBL0841CKILF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN4333EU0100) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • Renesas recommends using a clock tree architecture that includes a clock generator, clock distribution network, and clock buffering to ensure low skew and jitter. The 9DBL0841CKILF datasheet provides guidelines for clock tree implementation, and Renesas also offers a clock tree design tool to help with the design process.
  • The 9DBL0841CKILF has a maximum junction temperature of 125°C. To ensure reliable operation, it's essential to implement proper thermal management, including heat sink design, thermal interface materials, and airflow management. Renesas provides thermal design guidelines and thermal models to help with thermal management.
  • Renesas provides a troubleshooting guide in their application note (R01AN4333EU0100) that covers common issues, such as clocking, reset, and power-on reset. Additionally, Renesas offers a range of development tools, including evaluation boards and software development kits, to help with debugging and troubleshooting.
  • The 9DBL0841CKILF requires a specific power sequencing scheme to ensure proper operation. Renesas recommends a power-on sequence that includes a power-up ramp time of 10 ms, followed by a 10 ms delay before applying the clock signal. The datasheet provides detailed power sequencing guidelines.
