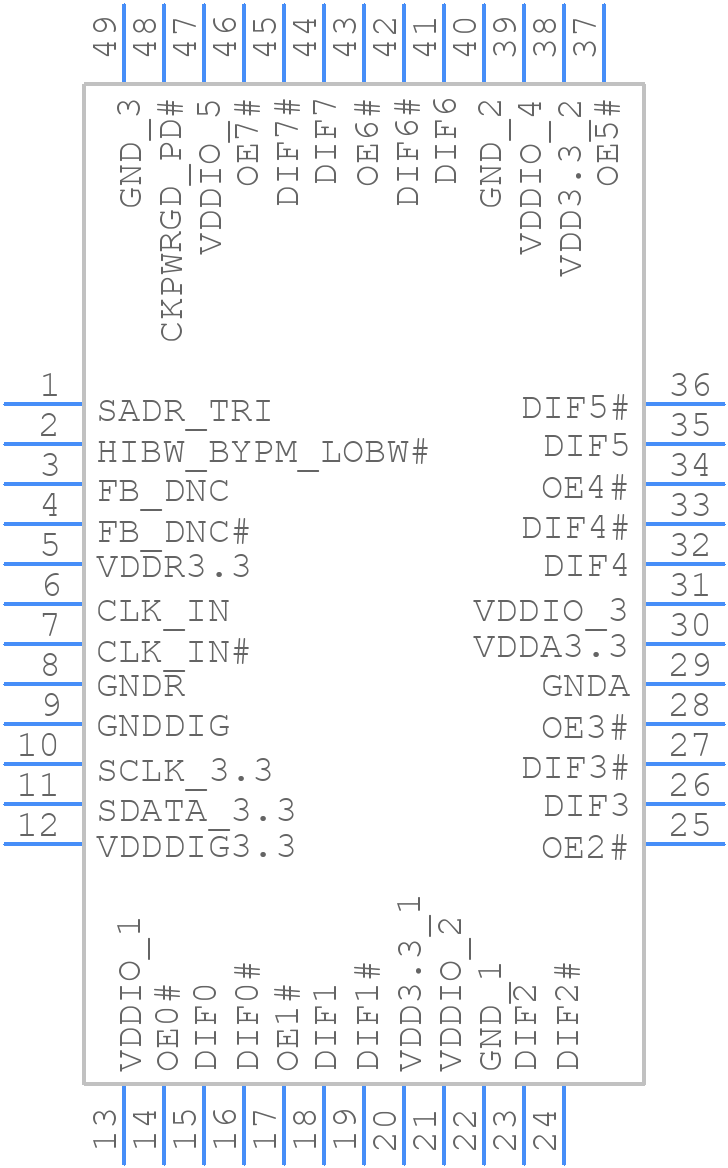

9DBL0851CKILFT - Renesas Electronics

9DBL0851CKILFT Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the 9DBL0851CKILFT?
  A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and decoupling capacitors should be placed close to the device.
• How do I ensure reliable operation of the 9DBL0851CKILFT in high-temperature environments?
  Ensure proper heat sinking, use a thermal interface material, and follow the recommended thermal design guidelines. Also, consider using a heat sink with a thermal conductivity of at least 1 W/m-K.
• What are the specific requirements for the input clock signal to the 9DBL0851CKILFT?
  The input clock signal should be a differential signal with a frequency range of 25 MHz to 100 MHz, and an amplitude of 200 mV to 1 V. The clock signal should also have a rise and fall time of less than 1 ns.
• How do I troubleshoot issues with the 9DBL0851CKILFT, such as unexpected output or incorrect frequency synthesis?
  Use a logic analyzer or oscilloscope to monitor the input and output signals. Check the power supply voltage, clock signal, and configuration registers. Also, consult the datasheet and application notes for troubleshooting guidelines.
• What are the specific requirements for the power supply voltage to the 9DBL0851CKILFT?
  The power supply voltage should be 1.8 V ± 10% with a maximum current rating of 100 mA. The power supply should also be decoupled with a 10 μF capacitor and a 100 nF capacitor in parallel.
