9DBU0441AKILFT - Renesas Electronics

Description: The 9DBU0441 is a member of IDT's 1.5 V Ultra-Low-Power (ULP) PCIe family. It has integrated output terminations providing Zo=100 ohms for direct connection to 100 ohm transmission lines. The device has 4 output enables for clock management, and 3 selectable SMBus addresses.

Download 9DBU0441AKILFT Model

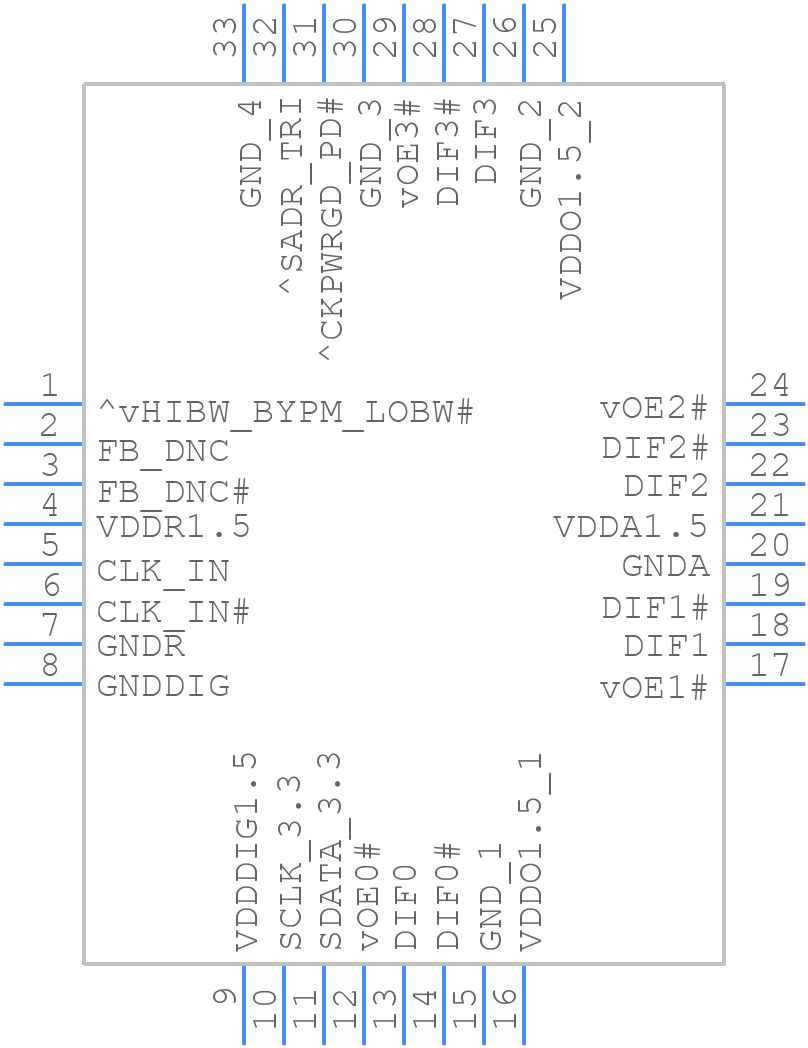

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
9DBU0441AKILFT - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-pin VFQFPN
click to zoom
3D Models
9DBU0441AKILFT - Renesas Electronics  - 3D model - Quad Flat No-Lead - 32-pin VFQFPN
click to zoom

9DBU0441AKILFT Details

  • Manufacturer Part Number:

    9DBU0441AKILFT

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Pin Count:

    32

  • Manufacturer Package Code:

    NLG32P1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

9DBU0441AKILFT Frequently Asked Questions (FAQs)

  • Renesas provides a reference design guide for the 9DBU0441AKILFT, which includes recommendations for PCB layout, thermal management, and component placement. It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and signal integrity.
  • The 9DBU0441AKILFT requires a specific power sequencing and voltage regulation scheme. Renesas recommends using a dedicated power management IC (PMIC) or a custom power supply design that meets the device's power requirements. Consult the datasheet and application notes for more information.
  • The clock and PLL configuration for the 9DBU0441AKILFT depend on the specific application and system requirements. Renesas provides a clocking and PLL configuration guide, which includes recommended settings and guidelines for optimal performance and power consumption.
  • To optimize power consumption and reduce heat generation, follow Renesas' guidelines for power management, clock gating, and dynamic voltage and frequency scaling (DVFS). Additionally, consider using power-saving modes, such as sleep or standby, when the device is not in use.
  • The 9DBU0441AKILFT has a specified operating temperature range. When operating in high-temperature environments, ensure that the device is properly cooled, and follow Renesas' guidelines for thermal management and derating. Consult the datasheet and application notes for more information.
