Description:The 9DBU0441 is a member of IDT's 1.5 V Ultra-Low-Power (ULP) PCIe family. It has integrated output terminations providing Zo=100 ohms for direct connection to 100 ohm transmission lines. The device has 4 output enables for clock management, and 3 selectable SMBus addresses.
Renesas provides a recommended PCB layout guide in their application notes, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
Renesas recommends a specific power sequencing scheme to ensure proper startup and operation of the device. This typically involves powering up the VCC and VCCIO pins in a specific order, followed by the clock and other input signals.
The 9DBU0441AKLF has a high power density, so thermal management is crucial. Renesas recommends using a heat sink, thermal interface material, and ensuring good airflow around the device to keep the junction temperature within the specified range.
Renesas provides a troubleshooting guide in their application notes, which includes steps to identify and resolve common issues such as clocking problems, power-on reset failures, and output signal integrity issues.
Renesas recommends following proper EMI and EMC design guidelines to minimize electromagnetic interference and ensure compliance with regulatory standards. This includes using shielding, filtering, and proper PCB layout techniques.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
9DBU0441AKLF Overview

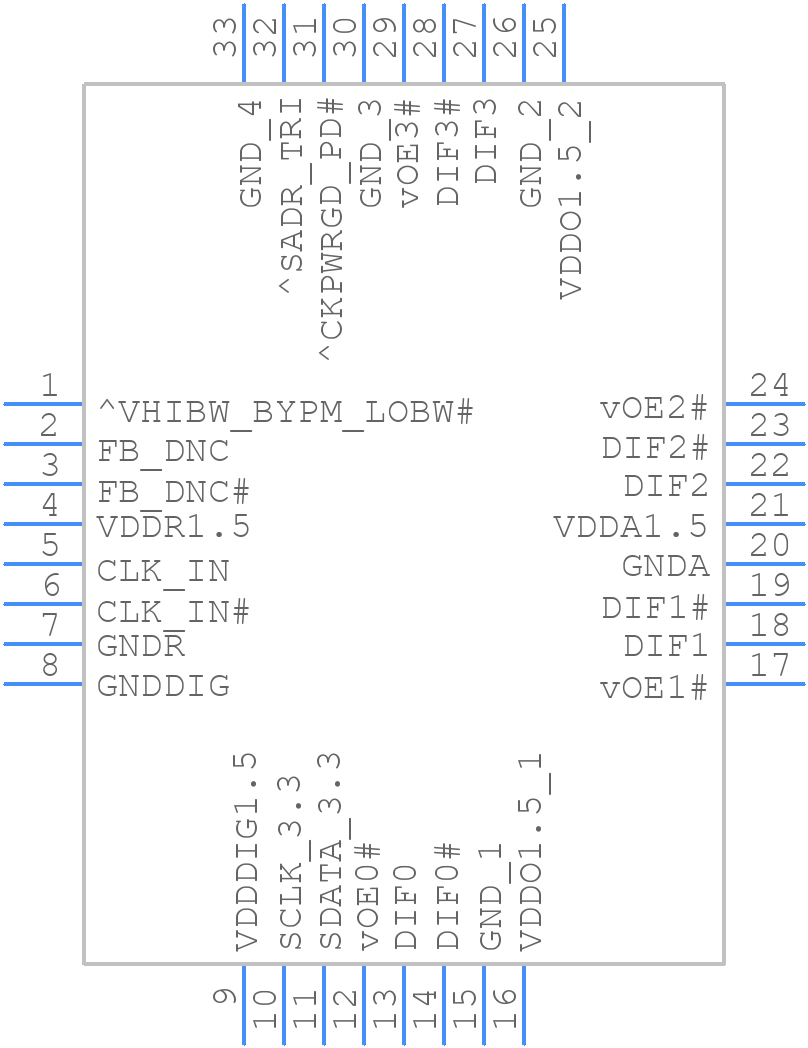

Use the download button to access the 9DBU0441AKLF schematic symbol, PCB footprint, and 3D model.
