9DBV0441AKILF - Renesas Electronics

Description: The 9DBV0441 is a member of Renesas' SOC-Friendly 1.8V Very-Low-Power (VLP) PCIe family. It has integrated output terminations providing Zo = 100Ω for direct connection to 100Ω transmission lines. The device has 4 output enables for clock management, and 3 selectable SMBus addresses.

Download 9DBV0441AKILF Model

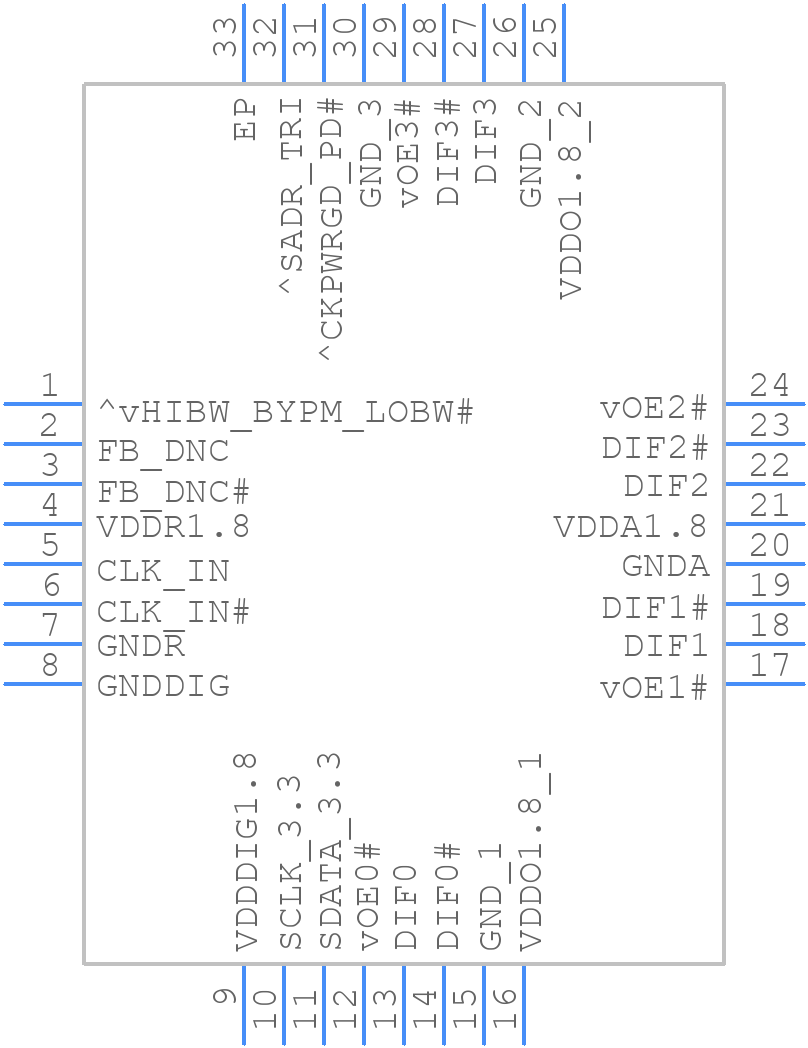

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
9DBV0441AKILF - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - Lead-Free” 32 Lead VFQFN
click to zoom
3D Models
9DBV0441AKILF - Renesas Electronics  - 3D model - Quad Flat No-Lead - Lead-Free” 32 Lead VFQFN
click to zoom

9DBV0441AKILF Details

  • Manufacturer Part Number:

    9DBV0441AKILF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Package Description:

    VFQFPN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    NLG32P1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2020-07-29

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    15

  • Family:

    9DBV

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE WITH SERIES RESISTOR

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    35 mA

  • Same Edge Skew-Max (tskwd):

    0.05 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    1.9 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

9DBV0441AKILF Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 9DBV0441AKILF is -40°C to 125°C.
  • The clock input for the 9DBV0441AKILF can be configured using the CLKIN pin, which accepts a clock signal with a frequency range of 10 MHz to 40 MHz.
  • The maximum output current for the 9DBV0441AKILF is 1.5 A per output.
  • The 9DBV0441AKILF can be put into a low-power state by asserting the EN pin low, which reduces the quiescent current to less than 1 μA.
  • The SYNC pin on the 9DBV0441AKILF is used to synchronize the output voltage with an external clock signal, allowing for reduced output noise and improved system performance.
