9DBV0441AKILFT - Renesas Electronics

Description: The 9DBV0441 is a member of Renesas' SOC-Friendly 1.8V Very-Low-Power (VLP) PCIe family. It has integrated output terminations providing Zo = 100Ω for direct connection to 100Ω transmission lines. The device has 4 output enables for clock management, and 3 selectable SMBus addresses.

Download 9DBV0441AKILFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

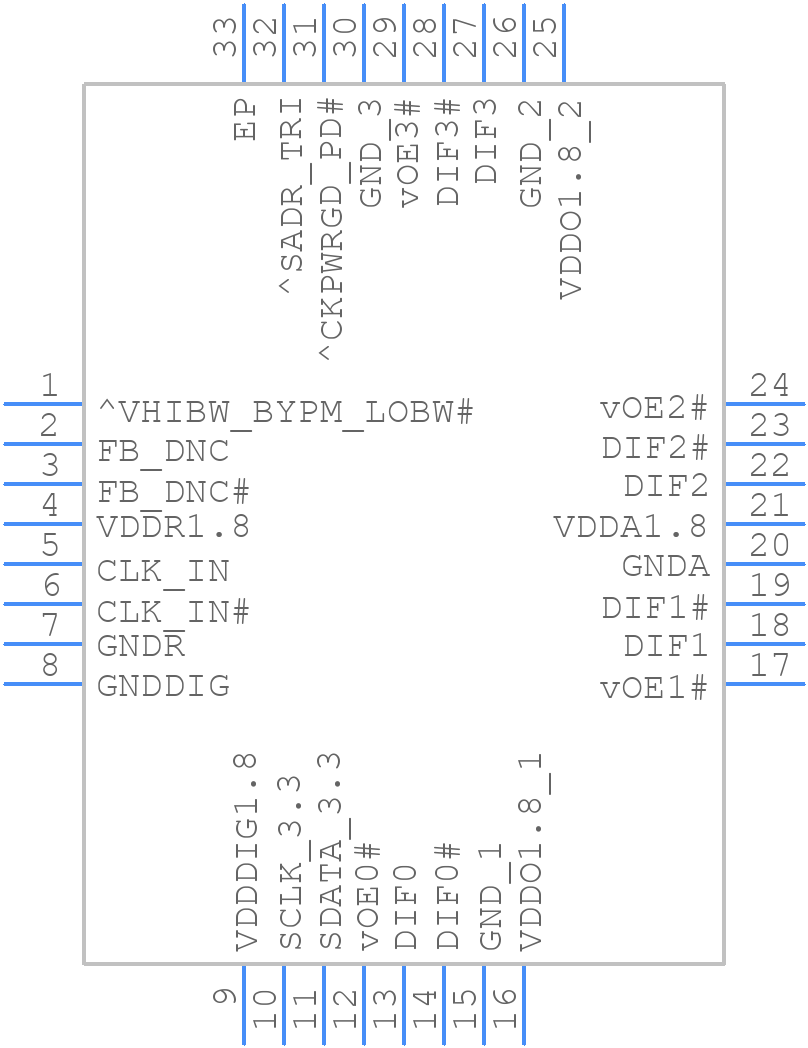

9DBV0441AKILFT - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
9DBV0441AKILFT - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-lead VFQFN, Lead Free
click to zoom
3D Models
9DBV0441AKILFT - Renesas Electronics - 3D model - Quad Flat No-Lead - 32-lead VFQFN, Lead Free
click to zoom

9DBV0441AKILFT Details

  • Manufacturer Part Number:

    9DBV0441AKILFT

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Package Description:

    VFQFPN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    NLG32P1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2020-07-29

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    15

  • Family:

    9DBV

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE WITH SERIES RESISTOR

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    35 mA

  • Same Edge Skew-Max (tskwd):

    0.05 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    1.9 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

9DBV0441AKILFT Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application notes (e.g., AN9834) and design guides (e.g., DG-00234). It's essential to follow these guidelines to ensure optimal performance, minimize noise, and reduce EMI.
  • The 9DBV0441AKILFT has a thermal pad on the bottom side, which requires a thermal interface material (TIM) for heat dissipation. Ensure a good thermal connection to a heat sink or a metal core PCB to keep the junction temperature within the recommended range (typically < 125°C).
  • The input clock signal should be a differential signal with a frequency range of 25 MHz to 100 MHz. The clock signal should have a duty cycle of 40% to 60% and a voltage swing of 200 mV to 400 mV. Additionally, the clock signal should be AC-coupled to the device.
  • The 9DBV0441AKILFT has a programmable output frequency divider that allows for flexible frequency configuration. Use the device's control registers to set the desired output frequency. Refer to the datasheet and application notes for specific register settings and configuration examples.
  • The 9DBV0441AKILFT has built-in ESD protection diodes on all pins. However, it's still essential to follow proper ESD handling procedures during device handling and PCB assembly. For latch-up prevention, ensure that the device is powered up and down correctly, and avoid voltage overshoots or undershoots on the power supply lines.
