Description:The 9DBV0531is a member of IDT's Full-Featured PCIe family. The device has 5 output enables for clock management, and 3 selectable SMBus addresses.
Renesas provides a recommended PCB layout guide in their application notes (e.g., AN9834) and design guides (e.g., DG-00234). It's essential to follow these guidelines to ensure optimal performance, minimize noise, and reduce EMI.
The 9DBV0531AKILF has a thermal pad on the bottom, which requires a thermal interface material (TIM) for heat dissipation. Ensure a good thermal connection to a heat sink or a metal core PCB. Follow Renesas' thermal design guidelines and consider using thermal simulation tools to optimize your design.
The input clock signal should meet the specified frequency, amplitude, and jitter requirements. Renesas recommends using a high-quality clock source with a stable frequency and minimal jitter. Additionally, ensure the clock signal is properly terminated and routed to minimize noise and reflections.
The 9DBV0531AKILF has various power-saving modes, such as standby and sleep modes. To configure the device for low-power operation, refer to the datasheet and application notes for specific register settings, clock control, and power management techniques.
The internal PLL settings depend on the specific application and clock requirements. Renesas provides guidelines for PLL configuration in their application notes and design guides. It's essential to follow these guidelines to ensure stable and accurate clock generation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
9DBV0531AKILF Overview

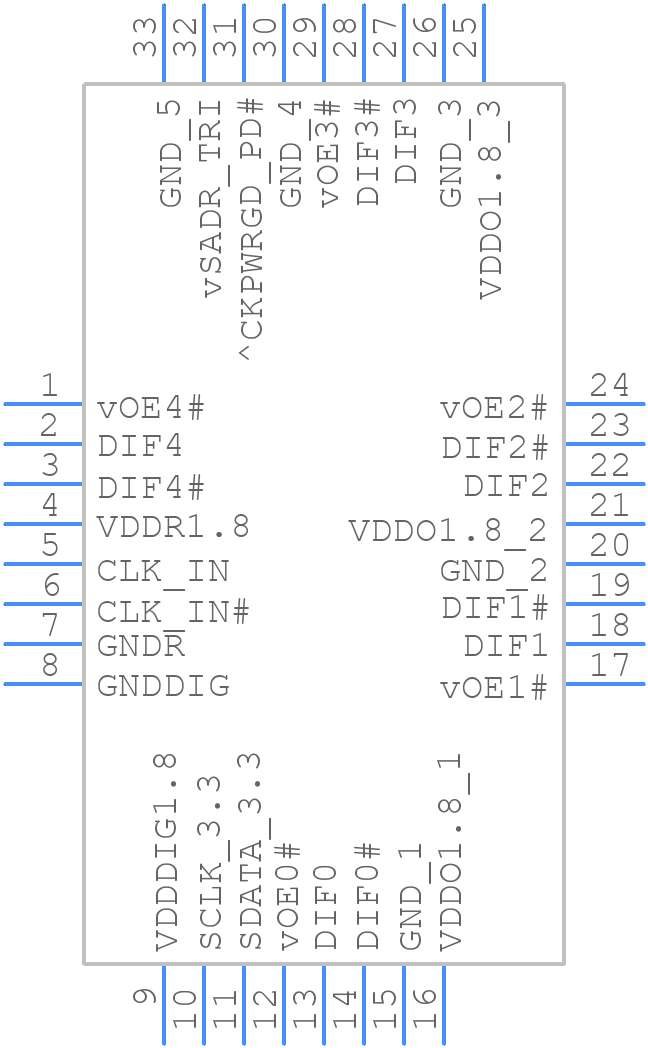

Use the download button to access the 9DBV0531AKILF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9DBV0,
or try a keyword search, such as Clock Drivers
