Description:The 9DBV0831 is an 8-output very low power buffer for 100MHz PCIe Gen1–5 applications. It can also be used for 50M or 125M Ethernet Applications via software frequency selection. The device has 8 output enables for clock management, and 3 selectable SMBus addresses.
Renesas provides a recommended PCB layout guide in their application notes (e.g., AN9834) and evaluation board documentation. It's essential to follow these guidelines to ensure proper signal integrity, power supply decoupling, and thermal management.
The 9DBV0831AKLF has a built-in POR circuit, but it's recommended to add an external POR circuit to ensure a reliable reset signal. A simple POR circuit can be implemented using a voltage supervisor IC (e.g., Renesas' RP108 series) and a few external components.
The 9DBV0831AKLF has a high junction-to-ambient thermal resistance (RθJA). To ensure reliable operation, it's essential to implement proper thermal management, such as using a heat sink, thermal interface material, and optimizing the PCB layout for heat dissipation.
The 9DBV0831AKLF has various low-power modes, such as sleep and standby modes. To configure these modes, refer to the device's datasheet and application notes, which provide detailed information on register settings, clock control, and power gating.
To minimize electromagnetic interference (EMI) and ensure electromagnetic compatibility (EMC), follow Renesas' guidelines for PCB layout, component selection, and shielding. Additionally, consider using EMI filters, chokes, and common-mode filters to reduce emissions and improve immunity.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
9DBV0831AKLF Overview

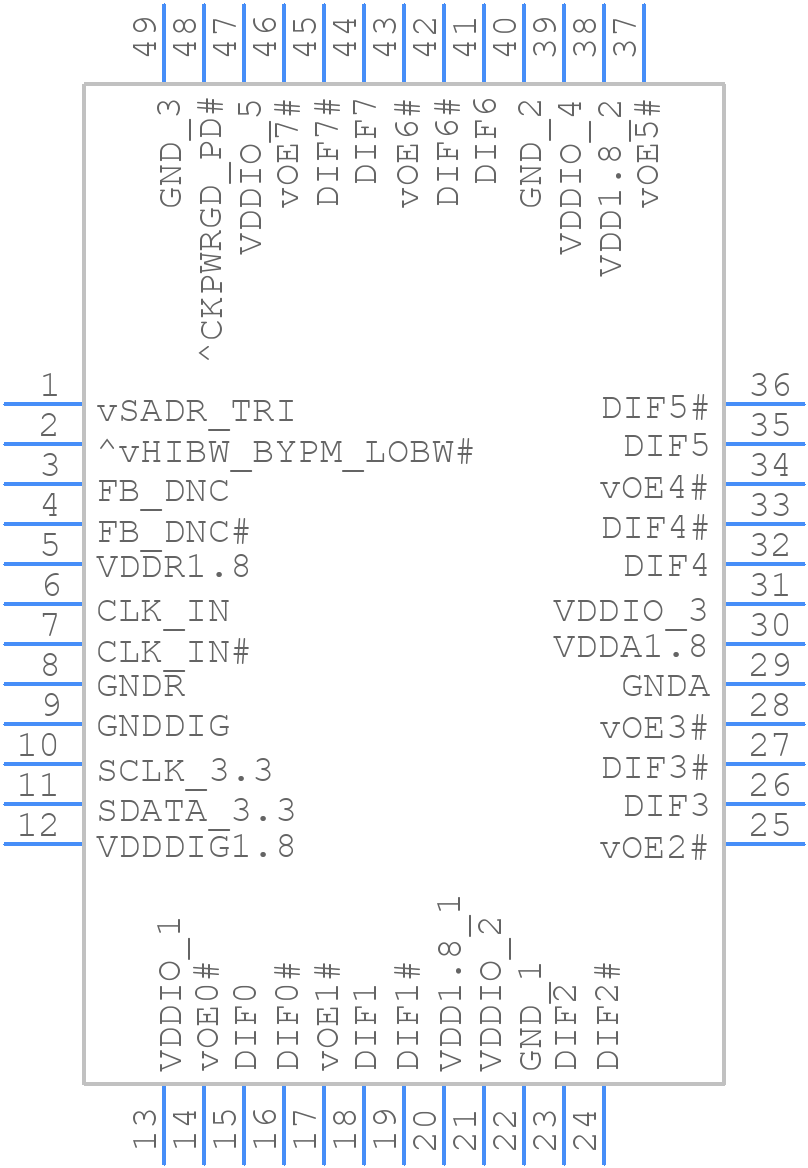

Use the download button to access the 9DBV0831AKLF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9DBV0,
or try a keyword search, such as Clock Drivers
