9DBV0931AKILFT - Renesas Electronics

Description: The 9DBV0931 is a member of IDT's Full-Featured PCIe family. The device has 9 output enables for clock management, and 3 selectable SMBus addresses.

Download 9DBV0931AKILFT Model
Schematic
symbols

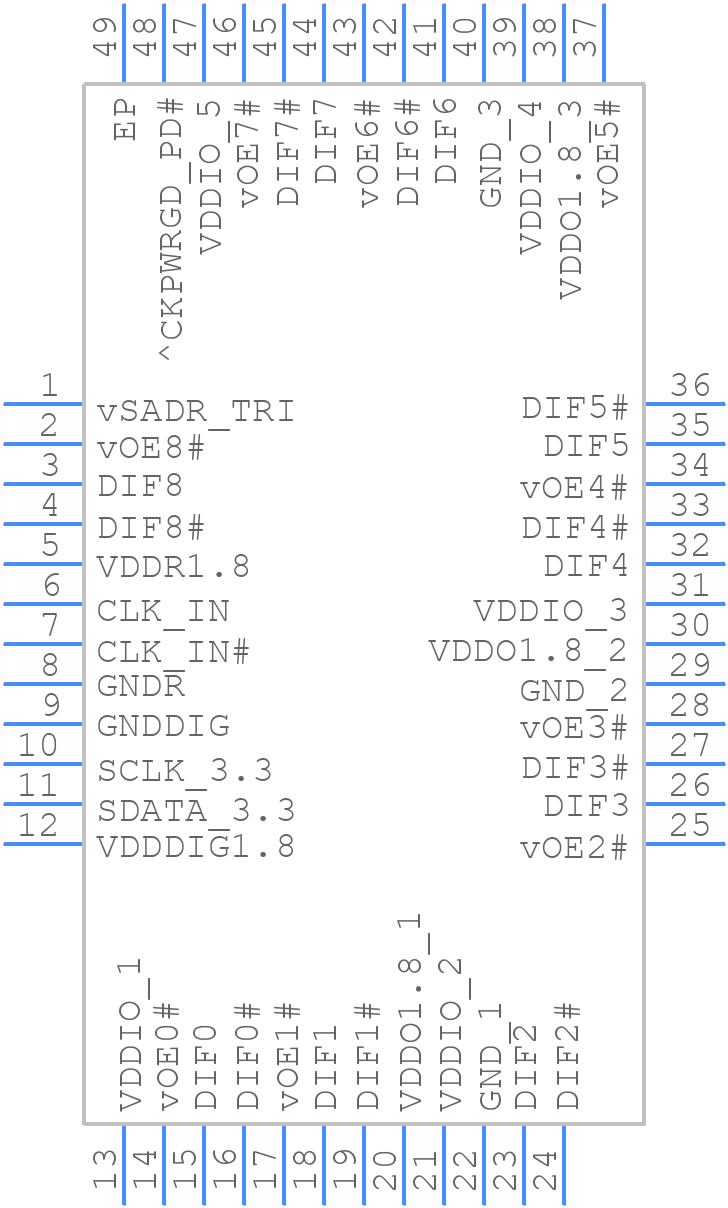

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
9DBV0931AKILFT - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NDG48P1_
click to zoom
3D Models
9DBV0931AKILFT - Renesas Electronics  - 3D model - Quad Flat No-Lead - NDG48P1_
click to zoom

9DBV0931AKILFT Details

  • Manufacturer Part Number:

    9DBV0931AKILFT

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    VFQFPN

  • Package Description:

    VFQFPN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    NDG48P1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-07-02

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin (Sn)

9DBV0931AKILFT Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application notes (e.g., AN9834) and design guides (e.g., DG0093). It's essential to follow these guidelines to ensure optimal performance, minimize noise, and reduce EMI.
  • The 9DBV0931AKILFT has a thermal pad on the bottom, which requires a thermal interface material (TIM) for heat dissipation. Ensure a good thermal connection to a heat sink or a metal plate on the PCB. Follow Renesas' thermal design guidelines and consider using thermal simulation tools to optimize the design.
  • The input clock signal should meet the specified frequency, amplitude, and jitter requirements. Renesas recommends using a high-quality clock source with a frequency accuracy of ±50 ppm and a jitter of <100 ps. Additionally, ensure the clock signal is properly terminated and routed to minimize noise and reflections.
  • The 9DBV0931AKILFT has a programmable output frequency divider. Use the device's control registers to configure the output frequency. Refer to the datasheet and programming guides (e.g., PG0093) for specific register settings and calculation formulas to achieve the desired output frequency.
  • The 9DBV0931AKILFT requires a specific power-up sequence and reset timing. Ensure that the power supplies are ramped up and down slowly (e.g., 1-2 ms) and that the reset signal is asserted for at least 10 ns. Refer to the datasheet and application notes for detailed power sequencing and reset requirements.
