9DBV0941AKLF - Renesas Electronics

Description: The 9DBV0941 is a member of IDT's Full-Featured PCIe family. The device has 9 output enables for clock management, and 3 selectable SMBus addresses. It has integrated terminations for direct connection to 100 ohm transmission lines.

Download 9DBV0941AKLF Model

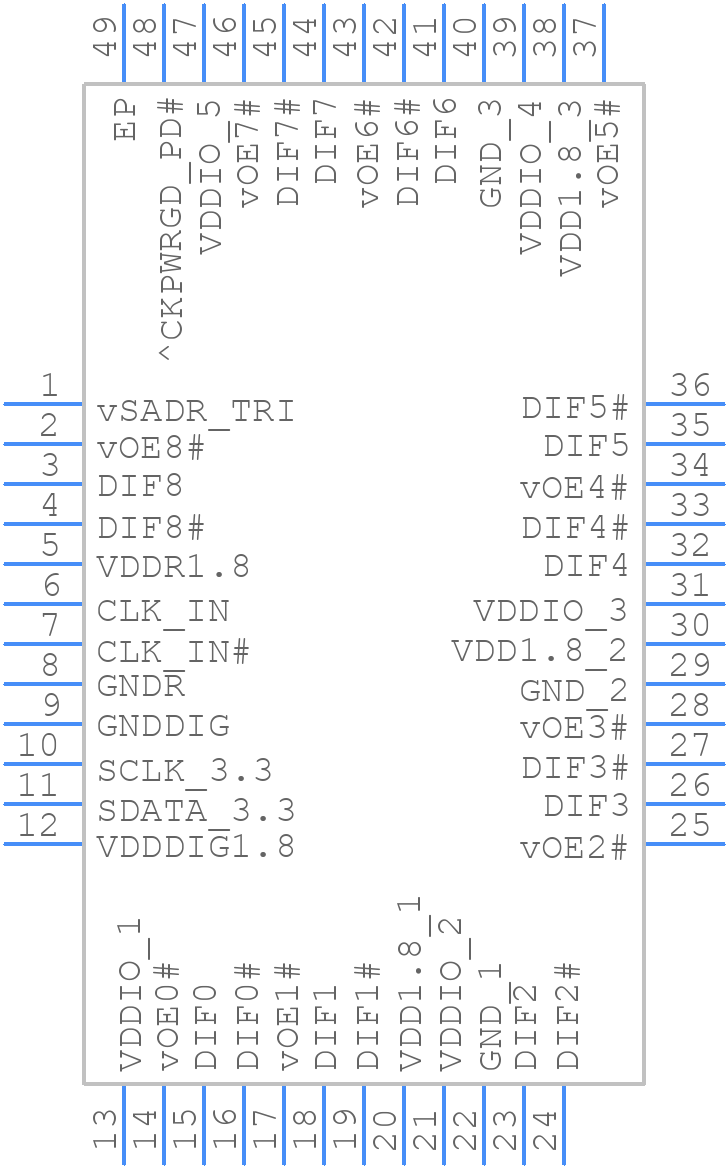

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
9DBV0941AKLF - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NDG48P2 =-
click to zoom
3D Models
9DBV0941AKLF - Renesas Electronics  - 3D model - Quad Flat No-Lead - NDG48P2 =-
click to zoom

9DBV0941AKLF Details

  • Manufacturer Part Number:

    9DBV0941AKLF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    VFQFPN

  • Package Description:

    VFQFPN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    NDG48P2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-07-02

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin (Sn)

9DBV0941AKLF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application notes (e.g., AN9834) and evaluation board documentation. It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency signals.
  • The 9DBV0941AKLF has a thermal pad on the bottom, which requires proper thermal management. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink, if necessary. Follow Renesas' thermal design guidelines and consider using a thermal simulation tool to optimize your design.
  • The input clock signal should meet the specified frequency, amplitude, and jitter requirements. Renesas recommends using a high-quality clock source with a stable frequency and low jitter. Additionally, ensure the clock signal is properly terminated and routed to minimize signal degradation.
  • To minimize power consumption, configure the device to use the lowest possible frequency and voltage settings required for your application. Use the power-down modes and disable unused features to reduce power consumption. Refer to the datasheet and application notes for specific guidance on power management.
  • To minimize EMI and ensure EMC, follow Renesas' guidelines for PCB layout, component placement, and shielding. Use proper filtering and decoupling techniques, and consider using a shielded enclosure or EMI-absorbing materials. Ensure compliance with relevant regulatory standards and perform EMI/EMC testing to validate your design.
