Description:9FG108 is a Synthesizer that provides 8 differential output pairs that are compliant to the Intel CK410 specification. It also provides support for PCI-Express, next generation I/O, and SATA. The part synthesizes several output frequencies from either a 14.31818 MHz crystal or a 25 MHz crystal. The device can also be driven by a reference input clock instead of a crystal. It provides outputs with cycle-to-cycle jitter of less than 50 ps and output-to-output skew of less than 65 ps.
Renesas provides a recommended PCB layout guide in their application note (R01AN4331EJ0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement.
Renesas recommends a specific power sequencing scheme in their application note (R01AN4331EJ0100) to ensure proper device operation. This includes powering up the VCC and VDD pins in a specific order and within a certain time frame.
Renesas recommends using high-frequency, low-ESR capacitors (e.g., 0.1uF, 1uF, and 10uF) placed close to the device's power pins to ensure stable operation and reduce noise.
The 9FG108EFLF has multiple low-power modes (e.g., Sleep, Deep Sleep, and Power-Down) that can be configured using the device's registers. Renesas provides detailed information on how to configure these modes in their user manual (R01UG3112EJ0100).
Renesas provides thermal design guidelines in their application note (R01AN4331EJ0100) which include thermal resistance, junction temperature, and thermal derating. Engineers should consider these factors when designing their PCB to ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
9FG108EFLF Overview

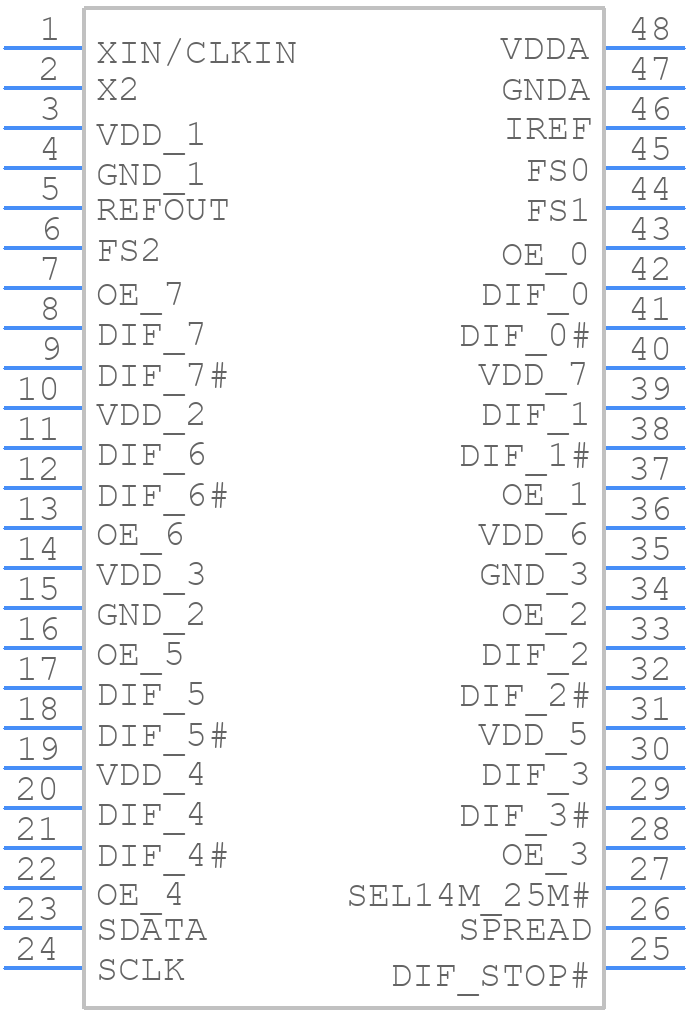

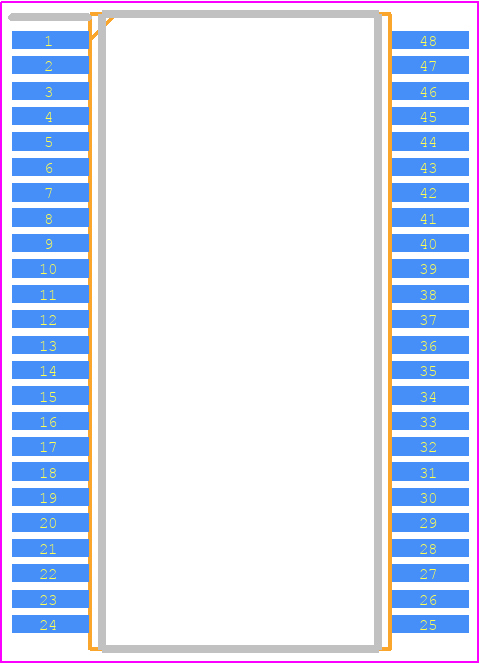

Use the download button to access the 9FG108EFLF schematic symbol, PCB footprint, and 3D model.
