9FG830AFILFT - Renesas Electronics

Description: The 9FG830 is a Frequency Timing Generator that provides 8 HCSL differential output pairs. These outputs support PCI-Express Gen3, and QPI applications. The part supports Spread Spectrum and synthesizes several additional output frequencies from either a 14.31818 MHz crystal, a 25 MHz crystal or reference input clock. The 9FG830 also outputs a copy of the reference clock. Complete control of the device is available via strapping pins or via the SMBus interface.

Download 9FG830AFILFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

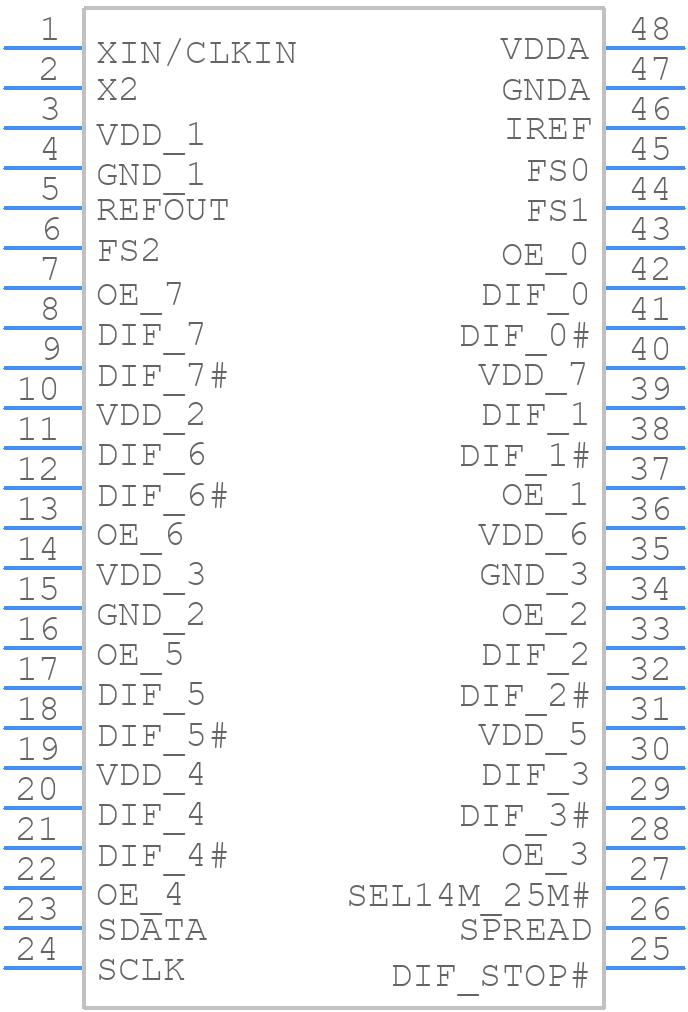

9FG830AFILFT - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

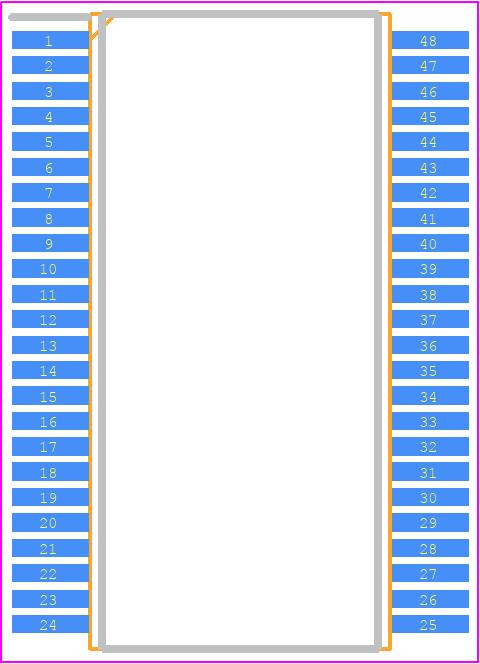

9FG830AFILFT - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 300 mil SSOP
click to zoom
3D Models
9FG830AFILFT - Renesas Electronics - 3D model - Small Outline Packages - 300 mil SSOP
click to zoom

9FG830AFILFT Details

  • Manufacturer Part Number:

    9FG830AFILFT

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    PVG48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e3

  • Length:

    15.875 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    400 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP48,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    25 MHz

  • Seated Height-Max:

    2.8 mm

  • Supply Current-Max:

    250 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

9FG830AFILFT Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application notes, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • Renesas recommends using a thermal pad or heat sink to dissipate heat generated by the device. The datasheet provides thermal resistance values, and application notes offer guidance on thermal management techniques.
  • The input clock signal should be a stable, low-jitter clock with a frequency range of 10-40 MHz. Renesas recommends using a clock signal with a duty cycle of 40-60% and a rise/fall time of <1 ns.
  • Renesas provides power-saving modes, such as the 'Sleep' mode, which can be enabled by setting specific register bits. Additionally, the device can be configured to operate at a lower frequency or with reduced voltage to minimize power consumption.
  • Renesas recommends following standard EMI and EMC design practices, such as using shielding, filtering, and grounding techniques to minimize electromagnetic interference. The datasheet provides guidance on EMI and EMC considerations.
