Description:The 9FGL0441/51 devices are 4-output 3.3V PCIe Gen1–5 clock generators. Each output has a dedicated OE# pin supporting PCIe CLKREQ# functionality. Two different spread spectrum levels, in addition to spread off, are supported. The 9FGL0441/51 supports PCIe Gen1–5 Common Clocked architectures (CC), PCIe Separate Reference no-Spread (SRNS) and Separate Reference Independent Spread (SRIS) clocking architectures.
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the decoupling capacitors should be placed as close to the device as possible.
Ensure that the device is properly heat-sinked, and the PCB is designed to dissipate heat efficiently. Also, consider using thermal interface materials and heat sinks to reduce the junction temperature.
The recommended PLL settings can be found in the datasheet, but generally, a PLL frequency of 100 MHz to 200 MHz is recommended. The clock configuration should be set to use the internal oscillator or an external clock source, depending on the application requirements.
Use a logic analyzer or oscilloscope to capture the signals and debug the issue. Check the power supply voltage, clock signals, and reset signals to identify the root cause of the issue. Also, review the device's errata sheet for known issues and workarounds.
Follow the guidelines for EMI and EMC compliance in the datasheet and application notes. Ensure that the PCB is designed with EMI and EMC in mind, using techniques such as shielding, filtering, and grounding to minimize emissions and susceptibility.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
9FGL0441CKILF Overview

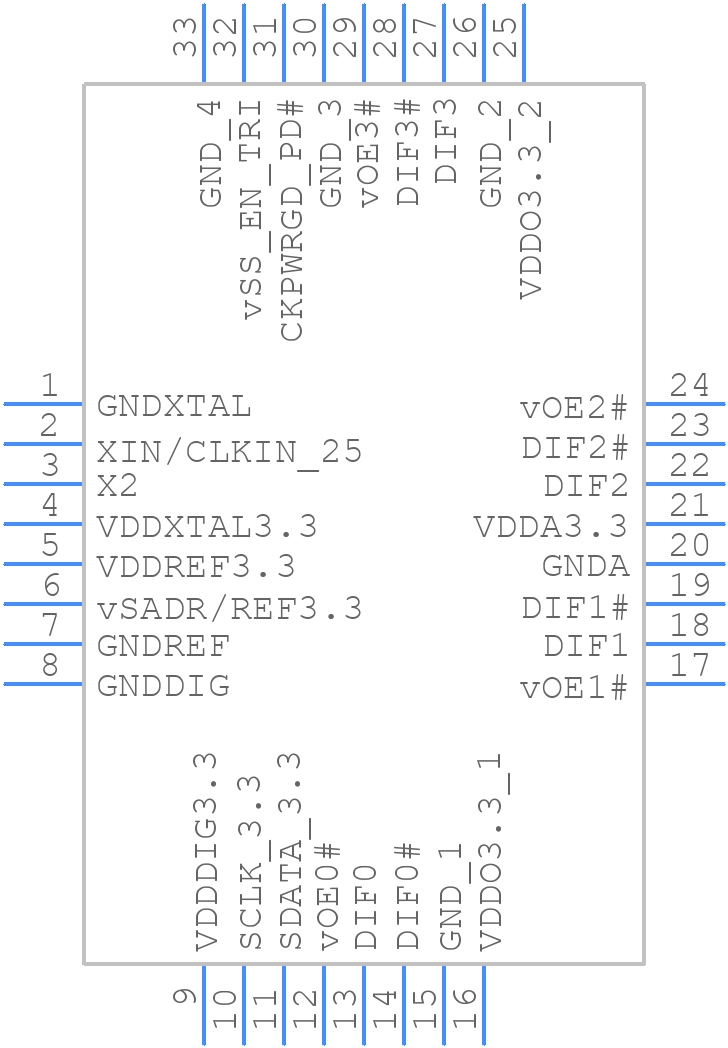

Use the download button to access the 9FGL0441CKILF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9FGL0,
or try a keyword search, such as Clock Generators
