Description:The 9FGL0441/51 devices are 4-output 3.3V PCIe Gen1–5 clock generators. Each output has a dedicated OE# pin supporting PCIe CLKREQ# functionality. Two different spread spectrum levels, in addition to spread off, are supported. The 9FGL0441/51 supports PCIe Gen1–5 Common Clocked architectures (CC), PCIe Separate Reference no-Spread (SRNS) and Separate Reference Independent Spread (SRIS) clocking architectures.
Renesas provides a recommended PCB layout guide in their application note (R01AN4461EJ0100) which includes thermal design considerations, such as thermal vias, copper pours, and heat sink attachment.
Renesas recommends a specific power sequencing scheme in their application note (R01AN4461EJ0100) to ensure proper device operation. The sequence involves powering up the VCC, then the VDD, and finally the AVCC.
Renesas recommends using 0.1uF to 1uF decoupling capacitors with a voltage rating of 10V or higher, placed as close as possible to the power pins. The exact value and type of capacitor may vary depending on the specific application and PCB layout.
Renesas provides a JTAG interface for debugging and testing. During production testing, it's recommended to use a JTAG adapter or a boundary scan tool to access the device's internal registers and perform testing. Renesas also provides a JTAG programming guide in their application note (R01AN4461EJ0100).
The thermal resistance values for the 9FGL0441DKILF package are not explicitly stated in the datasheet. However, Renesas provides thermal resistance values for similar packages in their thermal management application note (R01AN4461EJ0100). For the 9FGL0441DKILF, the thermal resistance values can be estimated as follows: RθJA = 30°C/W, RθJC = 10°C/W, and RθJB = 20°C/W.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
9FGL0441DKILF Overview

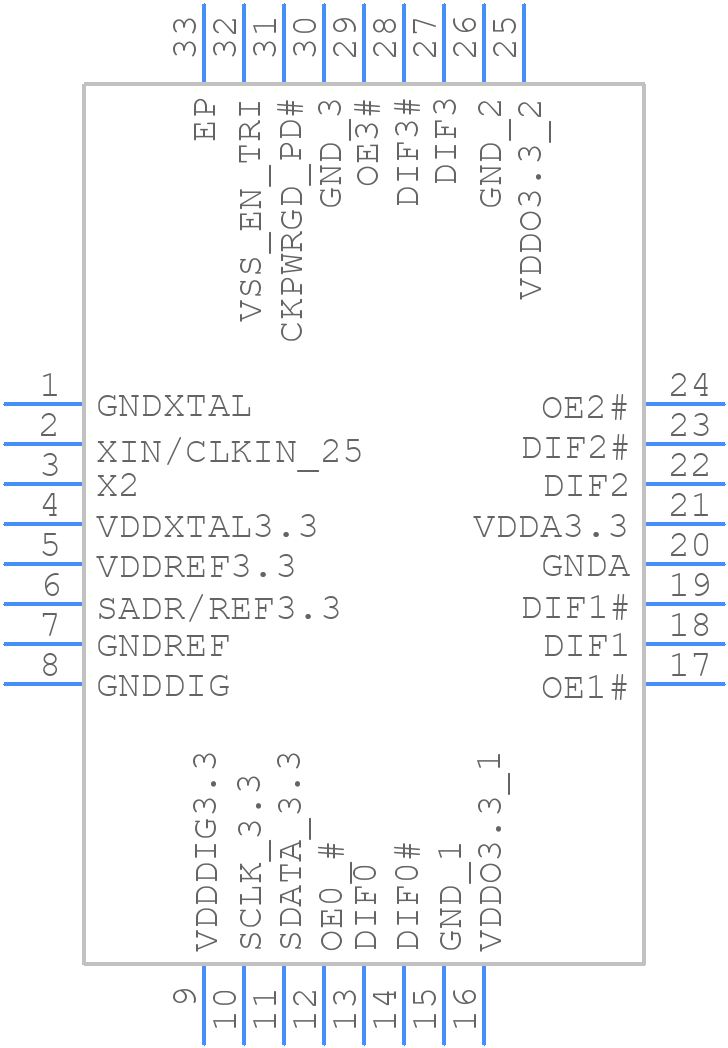

Use the download button to access the 9FGL0441DKILF schematic symbol, PCB footprint, and 3D model.
