Description:The 9FGL0441/51 devices are 4-output 3.3V PCIe Gen1–5 clock generators. Each output has a dedicated OE# pin supporting PCIe CLKREQ# functionality. Two different spread spectrum levels, in addition to spread off, are supported. The 9FGL0441/51 supports PCIe Gen1–5 Common Clocked architectures (CC), PCIe Separate Reference no-Spread (SRNS) and Separate Reference Independent Spread (SRIS) clocking architectures.
Renesas provides a reference design guide for the 9FGL0441DKILFT, which includes recommendations for PCB layout, thermal management, and decoupling. It's essential to follow these guidelines to ensure optimal performance, reduce electromagnetic interference (EMI), and prevent thermal issues.
Renesas offers a Clock Tree Configuration Tool that helps engineers configure the clock tree and PLL settings for their specific application. The tool provides a graphical interface to select the clock sources, frequencies, and dividers, and generates the required register settings.
Renesas provides a Power Consumption Estimation Tool that helps engineers estimate the power consumption of the 9FGL0441DKILFT under various operating conditions, including different clock frequencies, voltage levels, and temperatures. Additionally, the tool provides thermal characteristics, such as thermal resistance and junction temperature, to aid in thermal management.
Renesas provides a Secure Boot and Firmware Encryption Guide that outlines the steps to implement secure boot and firmware encryption on the 9FGL0441DKILFT. The guide covers topics such as key management, encryption algorithms, and boot loader configuration.
Renesas offers a range of development tools and SDKs for the 9FGL0441DKILFT, including the e² studio integrated development environment (IDE), the Renesas Compiler Package, and the Flexible Software Package (FSP). These tools provide a comprehensive development environment for creating, debugging, and optimizing software applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
9FGL0441DKILFT Overview

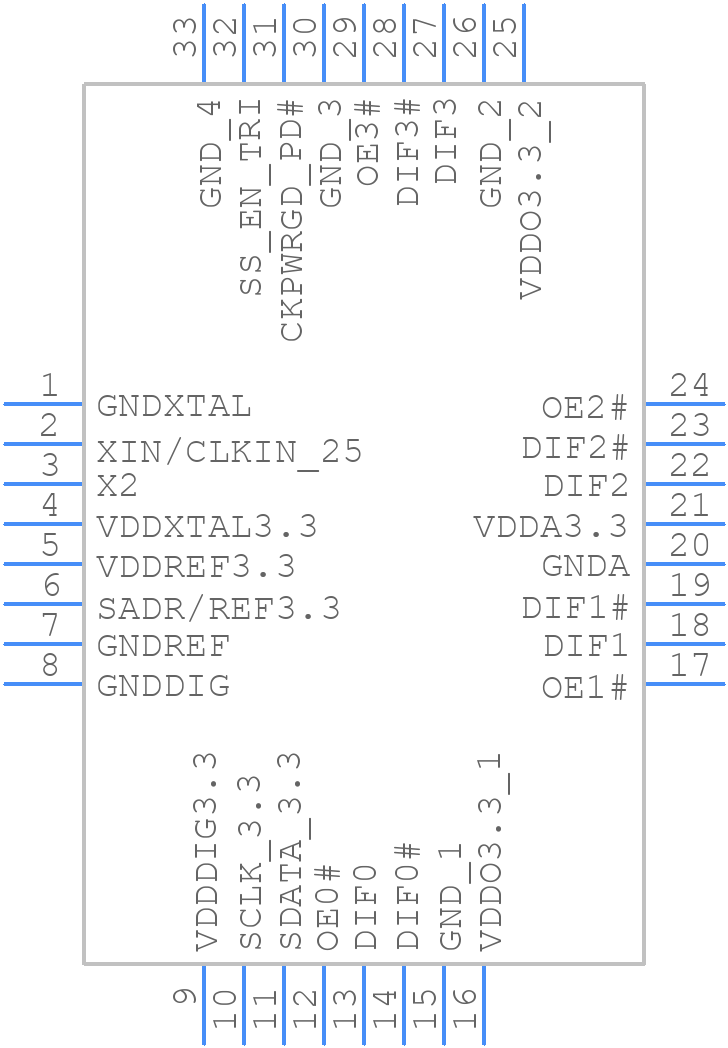

Use the download button to access the 9FGL0441DKILFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9FGL0,
or try a keyword search, such as Clock Generators
