Description:The 9FGU0841 is a member of IDT's 1.5 V Ultra-Low-Power PCIe clock family with integrated output terminations providing Zo=100 Ω. The device has 8 output enables for clock management, 2 different spread spectrum levels in addition to spread off, and 2 selectable SMBus addresses.For information regarding evaluation boards and material, please contact your local IDT sales representative.
Renesas provides a reference design guide for the 9FGU0841AKILFT, which includes recommendations for PCB layout, thermal management, and decoupling. It's essential to follow these guidelines to ensure optimal performance, low noise, and high reliability.
The 9FGU0841AKILFT requires a specific power-up sequence to ensure proper operation. Renesas recommends using a power management IC (PMIC) or a dedicated power sequencer to control the voltage rails. The datasheet provides a recommended power-up sequence, and additional guidance can be found in the application notes.
The 9FGU0841AKILFT is rated for operation up to 125°C, but it's essential to consider thermal management and derating factors when operating in high-temperature environments. Renesas provides thermal models and simulation tools to help designers estimate junction temperatures and ensure reliable operation.
Renesas provides application notes and design guides that offer optimization techniques for specific use cases. These resources cover topics like clocking, PLL configuration, and power-saving modes. Additionally, Renesas' support teams can provide customized guidance for specific applications.
Renesas recommends following industry-standard testing procedures, such as those outlined in the JEDEC and IPC standards. Additionally, Renesas provides testing guidelines and validation procedures in the datasheet and application notes. It's essential to perform thorough testing and validation to ensure the device's reliability and performance in the target application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
9FGU0841AKILFT Overview

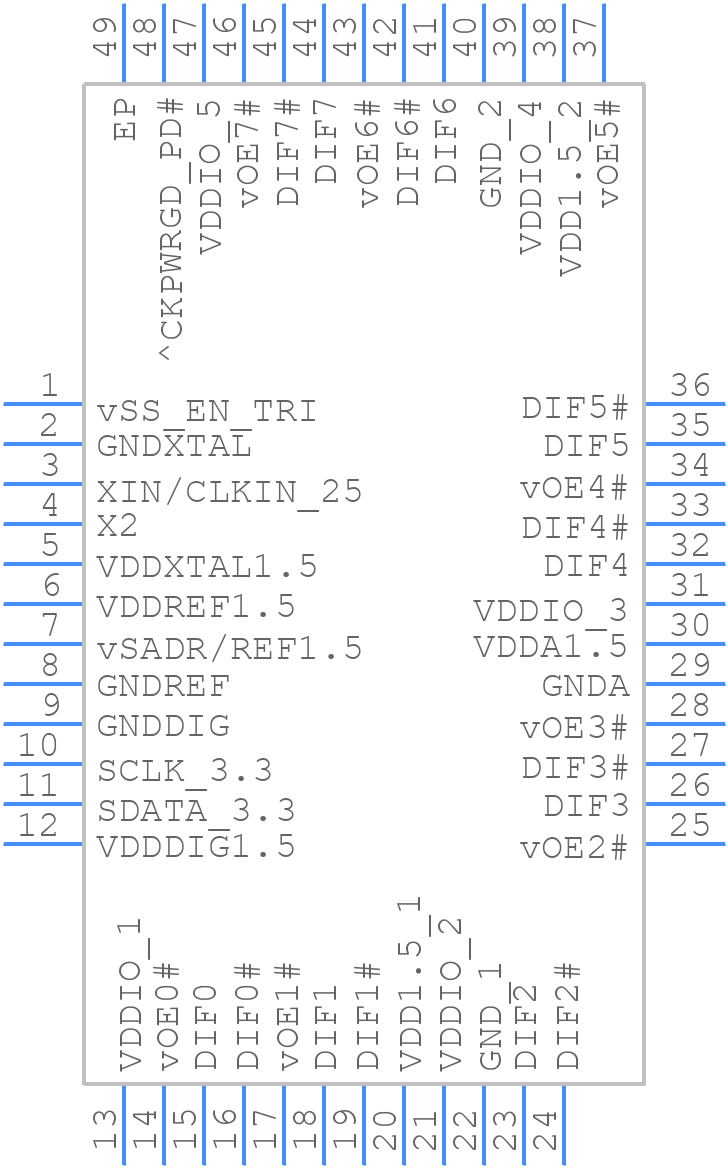

Use the download button to access the 9FGU0841AKILFT schematic symbol, PCB footprint, and 3D model.
