Description:The 9FGV0231 is a 2-output very low power clock generator for PCIe Gen1–4 Common Clocked (CC) applications. The device has 2 output enables for clock management and supports 2 different spread spectrum levels in addition to spread off.
Renesas provides a reference design guide for the 9FGV0231AKILF, which includes recommendations for PCB layout, thermal management, and decoupling. It's essential to follow these guidelines to ensure optimal performance, reduce noise, and prevent thermal issues.
The 9FGV0231AKILF requires a specific power sequencing and voltage regulation scheme. Renesas recommends using a power management IC (PMIC) specifically designed for the FPGA, such as the Renesas ISL91211A. The PMIC should be configured according to the FPGA's power requirements and sequencing guidelines.
The 9FGV0231AKILF's high-speed transceivers have specific constraints and limitations, such as lane reversal, polarity inversion, and clocking requirements. It's essential to consult the FPGA's user manual and follow the guidelines for high-speed transceiver implementation to ensure reliable operation.
To optimize the FPGA's clocking architecture, it's recommended to use a clocking scheme that minimizes jitter and skew. This can be achieved by using a high-quality clock source, such as a crystal oscillator, and implementing a clock tree architecture that reduces clock skew and jitter. Renesas provides guidelines for clocking architecture in the FPGA's user manual.
Implementing a reliable and secure boot mechanism is crucial for the 9FGV0231AKILF. Renesas recommends using a secure boot mechanism, such as the Renesas Secure Boot Solution, which provides a robust and secure way to boot the FPGA. It's essential to follow best practices for secure boot implementation, such as using secure keys, encrypting firmware, and implementing secure boot mechanisms.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
9FGV0231AKILF Overview

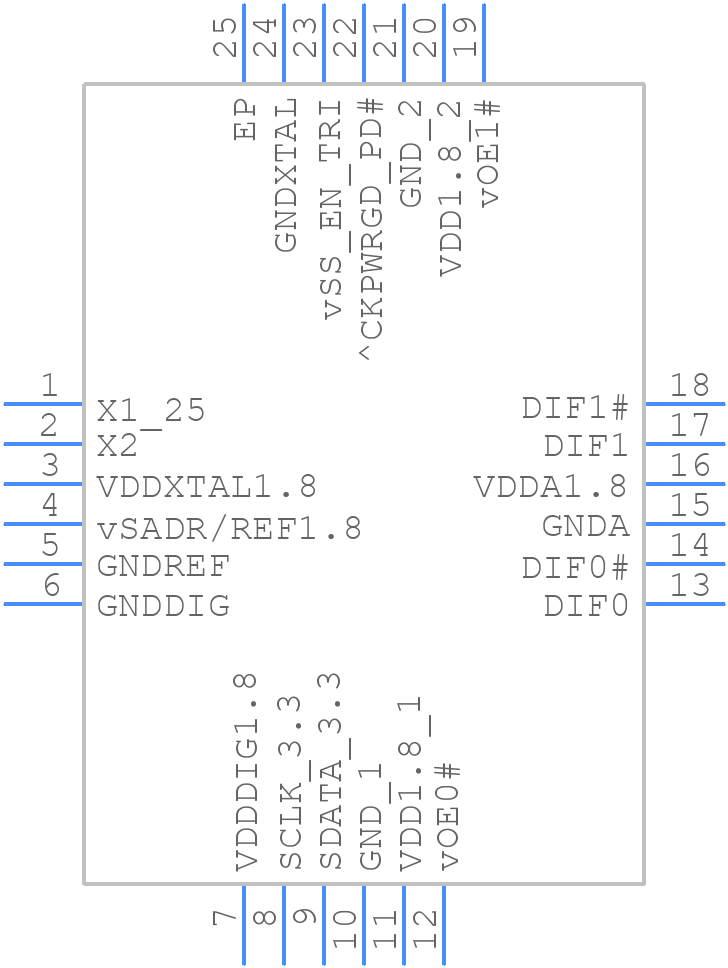

Use the download button to access the 9FGV0231AKILF schematic symbol, PCB footprint, and 3D model.
