9FGV0241AKLF - Renesas Electronics

Description: The 9FGV0241 is a 2-output very low power frequency generator for PCIe Gen1–4 applications with integrated output terminations providing Zo=100 Ω. The device has 2 output enables for clock management and supports 2 different spread spectrum levels in addition to spread off.

Download 9FGV0241AKLF Model

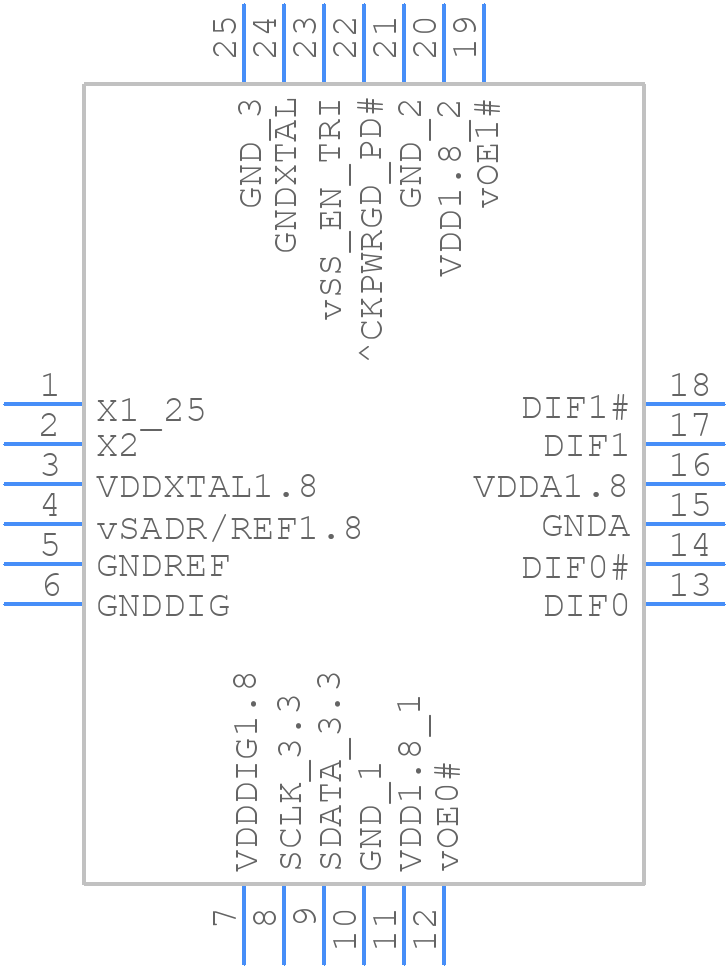

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
9FGV0241AKLF - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NLG24P1
click to zoom
3D Models
9FGV0241AKLF - Renesas Electronics  - 3D model - Quad Flat No-Lead - NLG24P1
click to zoom

9FGV0241AKLF Details

  • Manufacturer Part Number:

    9FGV0241AKLF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Pin Count:

    24

  • Manufacturer Package Code:

    NLG24P1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    15

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Terminal Finish:

    Matte Tin (Sn)

9FGV0241AKLF Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VCCIO, and then the clock signal. This ensures proper initialization and prevents damage to the device.
  • The device has a thermal pad on the bottom side, which should be connected to a thermal plane on the PCB to dissipate heat. Additionally, ensure good airflow and consider using a heat sink if the device is expected to operate at high temperatures.
  • The maximum clock frequency is 250 MHz, but it's recommended to check the specific clock frequency requirements for your application and ensure that the device is operated within the recommended specifications.
  • CDC can be implemented using synchronizers, such as double-flop synchronizers or FIFO-based synchronizers, to ensure data integrity and prevent metastability issues.
  • Follow the recommended PCB layout guidelines in the datasheet, including using a solid ground plane, minimizing signal trace lengths, and using decoupling capacitors to reduce noise and ensure signal integrity.
