Description:The 9FGV0431 is a 4-output very low power clock generator for PCIe Gen 1–4 applications. The device has 4 output enables for clock management and supports 2 different spread spectrum levels in addition to spread off.
Renesas provides a recommended PCB layout guide in their application note (R01AN4333EJ0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement.
Renesas recommends a specific power sequencing scheme in their application note (R01AN4333EJ0100) to ensure proper device operation. The sequence involves powering up the VCCIO, VCC, and VTT rails in a specific order.
The recommended PLL settings can be found in the Renesas FPGA development tool, Diamond, or in the device's datasheet. The settings include the PLL mode, frequency, and loop filter values.
Renesas provides power optimization techniques in their application note (R01AN4333EJ0100), including clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS). Additionally, the device's power management features, such as the Power Manager (PM) and Dynamic Power Management (DPM), can be used to reduce power consumption.
The BIST feature has limitations, such as not testing all device resources, and may not detect all possible faults. Renesas recommends using the BIST feature in conjunction with other testing methods, such as JTAG boundary scan, to ensure comprehensive device testing.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
9FGV0431AKLF Overview

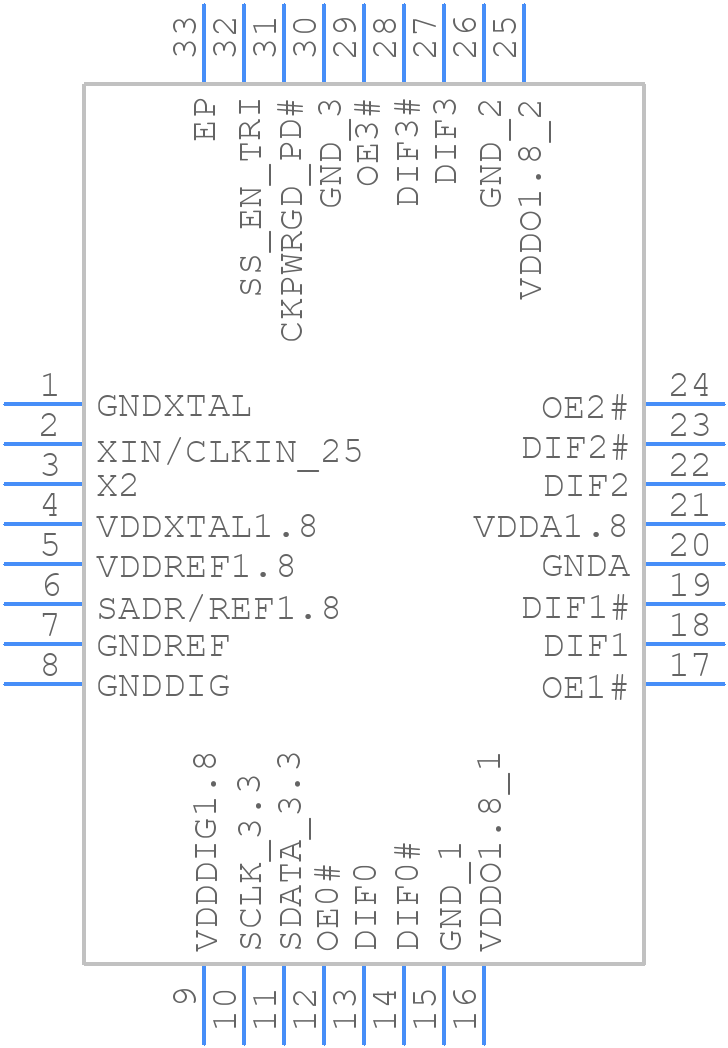

Use the download button to access the 9FGV0431AKLF schematic symbol, PCB footprint, and 3D model.
