9FGV0441AKILF - Renesas Electronics

Description: The 9FGV0441 is an 4-output very low power clock generator for PCIe Gen1–4 applications with integrated output terminations providing Zo = 100Ω. The device has 4 output enables for clock management and supports 2 different spread spectrum levels in addition to spread off.

Download 9FGV0441AKILF Model

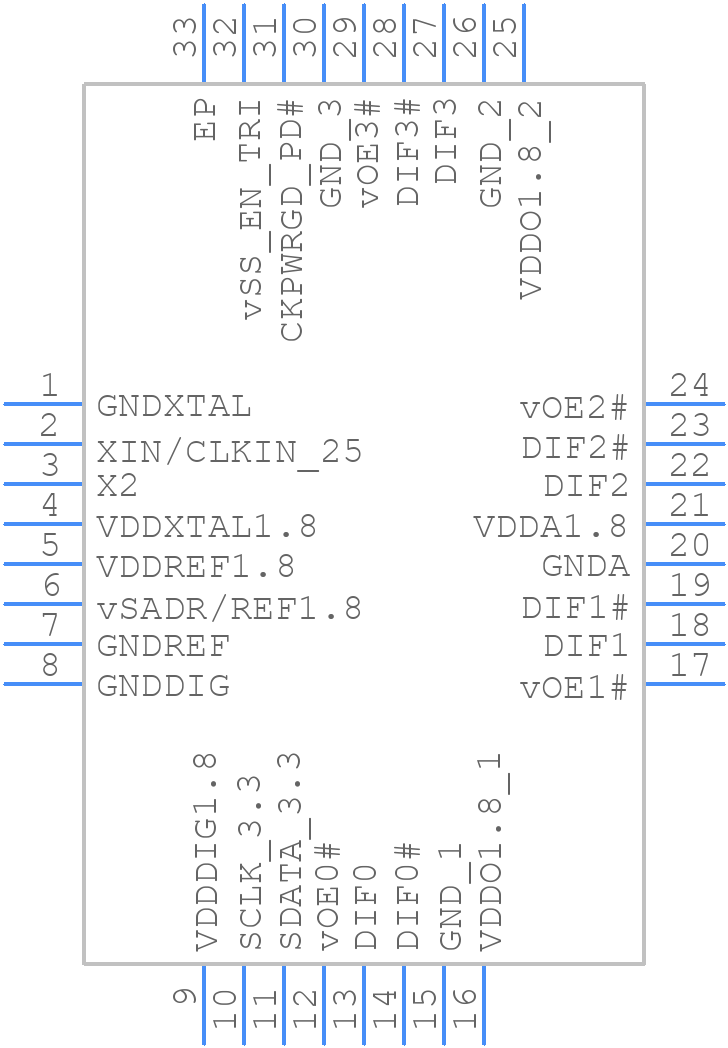

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
9FGV0441AKILF - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NLG 32
click to zoom
3D Models
9FGV0441AKILF - Renesas Electronics  - 3D model - Quad Flat No-Lead - NLG 32
click to zoom

9FGV0441AKILF Details

  • Manufacturer Part Number:

    9FGV0441AKILF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Pin Count:

    32

  • Manufacturer Package Code:

    NLG32P1

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    15

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Terminal Finish:

    Matte Tin (Sn)

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

9FGV0441AKILF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the power supply decoupling capacitors should be placed as close to the device as possible.
  • Ensure that the device is operated within the recommended temperature range of -40°C to 125°C. Implement thermal management techniques such as heat sinks, thermal interfaces, and airflow management to keep the device temperature within the recommended range.
  • The critical timing parameters include the clock frequency, clock duty cycle, and input/output signal timing. Ensure that the clock frequency is within the recommended range of 10 MHz to 100 MHz, and the clock duty cycle is between 40% and 60%. Input/output signal timing should be within the recommended setup and hold times.
  • Use a logic analyzer or oscilloscope to capture and analyze the device's signals, including the clock, reset, and data signals. Check for signal integrity issues, power supply noise, and electromagnetic interference (EMI). Verify that the device is properly configured and that the firmware is correct.
  • Use 0.1 μF to 1 μF ceramic capacitors with a voltage rating of 10 V to 16 V, placed as close to the device's power pins as possible. Additional bulk capacitors of 10 μF to 100 μF can be used to filter out power supply noise.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

9FGV0441AKILF Overview

Use the download button to access the 9FGV0441AKILF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9FGV0, or try a keyword search, such as Clock Generators
