9FGV0631CKILF - Renesas Electronics

Description: The 9FGV0631 is a member of IDT's SOC-Friendly 1.8 V Very-Low-Power PCIe clock family. The device has 6 output enables for clock management, 2 different spread spectrum levels in addition to spread off and 2 selectable SMBus addresses.

Download 9FGV0631CKILF Model

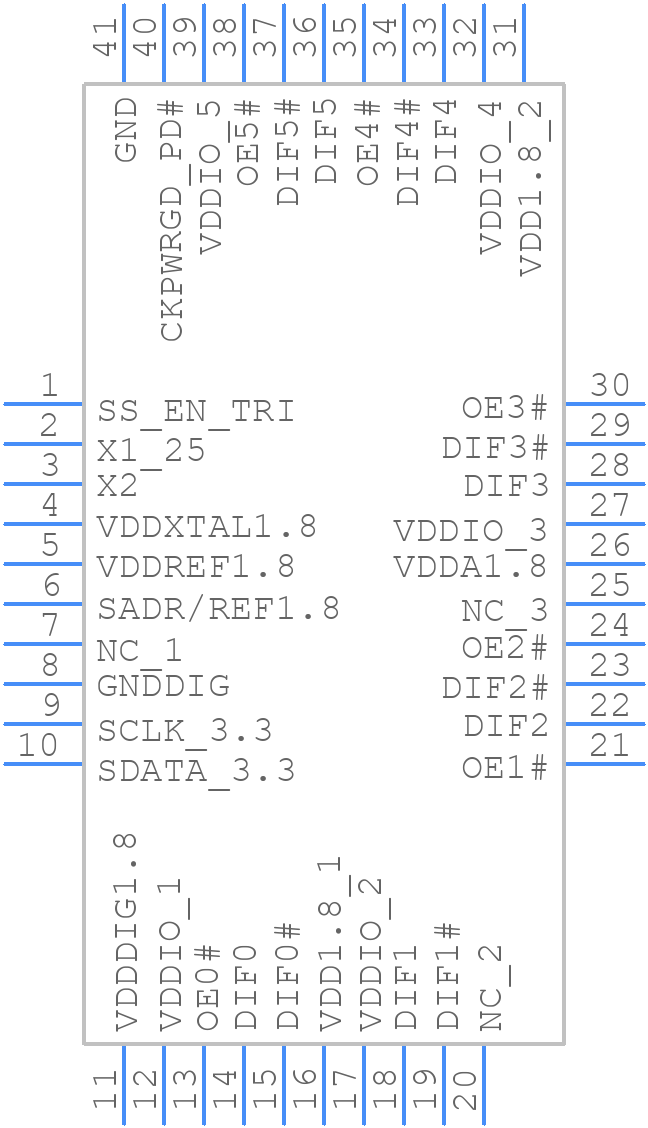

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
9FGV0631CKILF - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40 LD QFN
click to zoom
3D Models
9FGV0631CKILF - Renesas Electronics  - 3D model - Quad Flat No-Lead - 40 LD QFN
click to zoom

9FGV0631CKILF Details

  • Manufacturer Part Number:

    9FGV0631CKILF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    VFQFPN

  • Pin Count:

    40

  • Manufacturer Package Code:

    NDG40P2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    CONFIGURATION CAN BE ACCOMPLISHED W/T STRAPPING PINS, SMBUS NOT REQUIRED FOR DEVICE CONTROL

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    100 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    27 MHz

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PCIe

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

9FGV0631CKILF Overview

Use the download button to access the 9FGV0631CKILF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9FGV0, or try a keyword search, such as Clock Generators
