9FGV0641AKILF - Renesas Electronics

Description: The 9FGV0641 is a member of IDT's SOC-Friendly 1.8V Very-Low-Power PCIe clock family. The device has integrated 100 ohm output terminations providing direction connection to 100 ohm transmission lines. The device also has 6 output enables for clock management and supports 2 different spread spectrum levels in addition to spread off.For information regarding evaluation boards and material, please contact your local IDT sales representative.

Download 9FGV0641AKILF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

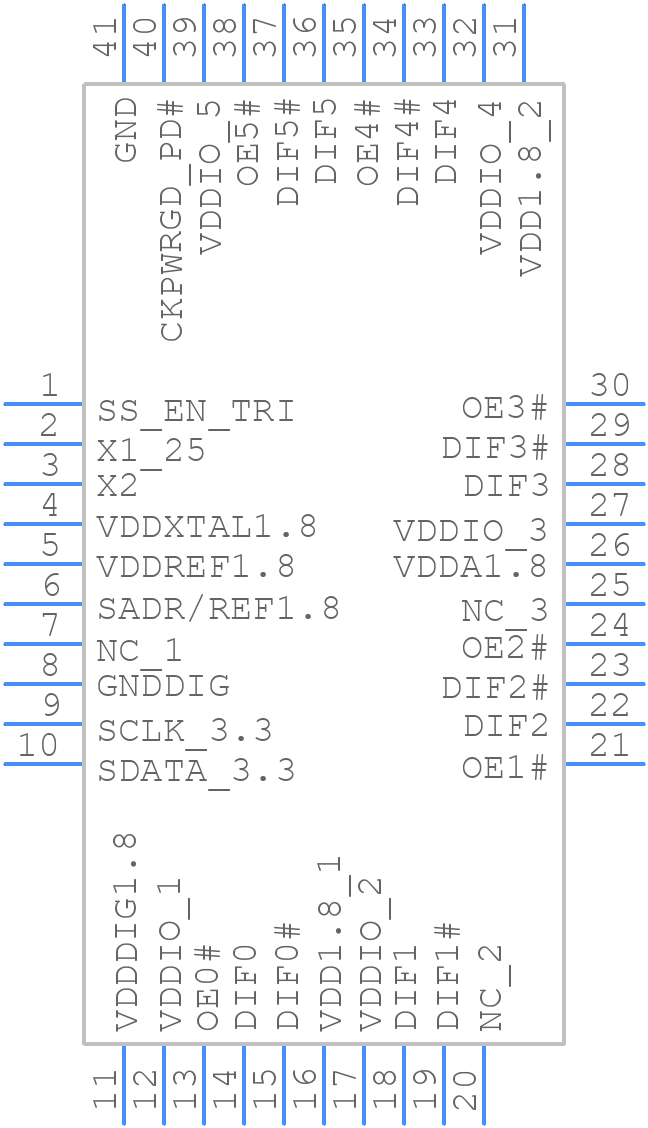

9FGV0641AKILF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
9FGV0641AKILF - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NDG40P2
click to zoom
3D Models
9FGV0641AKILF - Renesas Electronics - 3D model - Quad Flat No-Lead - NDG40P2
click to zoom

9FGV0641AKILF Details

  • Manufacturer Part Number:

    9FGV0641AKILF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Pin Count:

    40

  • Manufacturer Package Code:

    NDG40P2

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    15

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

9FGV0641AKILF Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 9FGV0641AKILF is -40°C to 125°C.
  • The clock input for the 9FGV0641AKILF can be configured using the Clock Control Register (CCR). The CCR allows you to select the clock source, clock frequency, and clock mode.
  • The maximum frequency for the 9FGV0641AKILF is 64 MHz.
  • The 9FGV0641AKILF has a built-in Power Management Unit (PMU) that allows you to implement power management. The PMU provides various power modes, including sleep, standby, and shutdown modes.
  • The maximum current consumption for the 9FGV0641AKILF is 150 mA.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

9FGV0641AKILF Overview

Use the download button to access the 9FGV0641AKILF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9FGV0, or try a keyword search, such as Clock Generators
