Part Image

9FGV1001B000NBGI - Renesas Electronics

Description: VFQFP-N 4 X 4 X 0.8 MM- NO LEAD

Download 9FGV1001B000NBGI Model

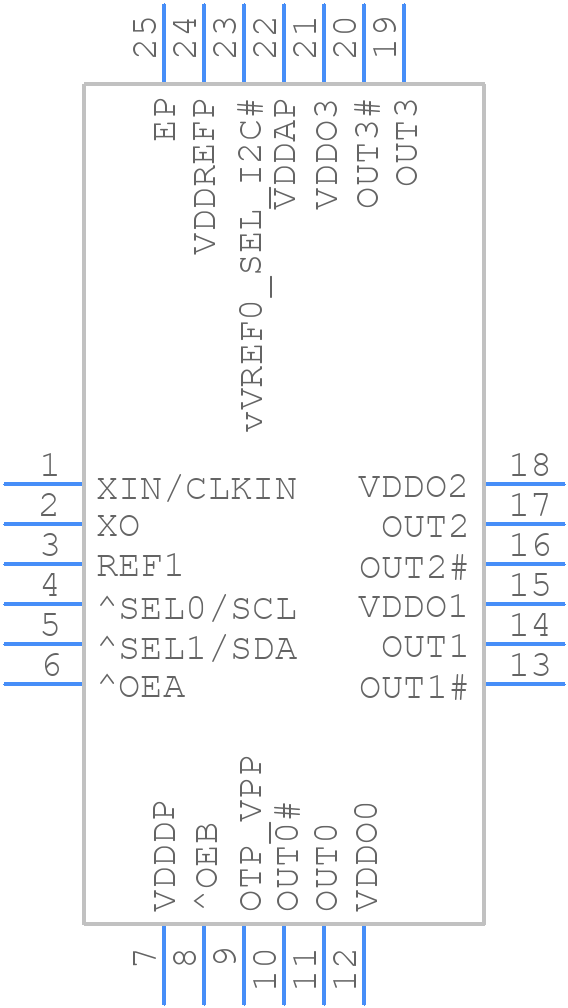

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
9FGV1001B000NBGI - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NBG24P2
click to zoom
3D Models
9FGV1001B000NBGI - Renesas Electronics  - 3D model - Quad Flat No-Lead - NBG24P2
click to zoom

9FGV1001B000NBGI Details

  • Manufacturer Part Number:

    9FGV1001B000NBGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    VFQFPN

  • Package Description:

    VFQFPN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    NBG24P2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    PCIe Generation 1, 2, 3, 4, IT ALSO REQUIRES 2.5V AND 3.3V NOMINAL SUPPLY VOLTAGE

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    325 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    240 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    31 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROGRAMMABLE
